Product Model

Config 1: F4E02 Config 2: F4E00 Config 3: F4E00

OS

SUNMI OS Config 1: based on Android 13 Config 2: based on Android 9 Config 3: based on Android 7

Processor

Config 1: Kyro-670 Qualcomm octa-core up to 2.7GHz Config 2/3: Hexa-core(Dual Cortex-A72+ Quad Cortex- A53) processor, 1.8GHz

Memory

Config 1: 6G RAM+128G ROM Config 2: 4G RAM+32G ROM Config 3: 4G RAM+16G ROM

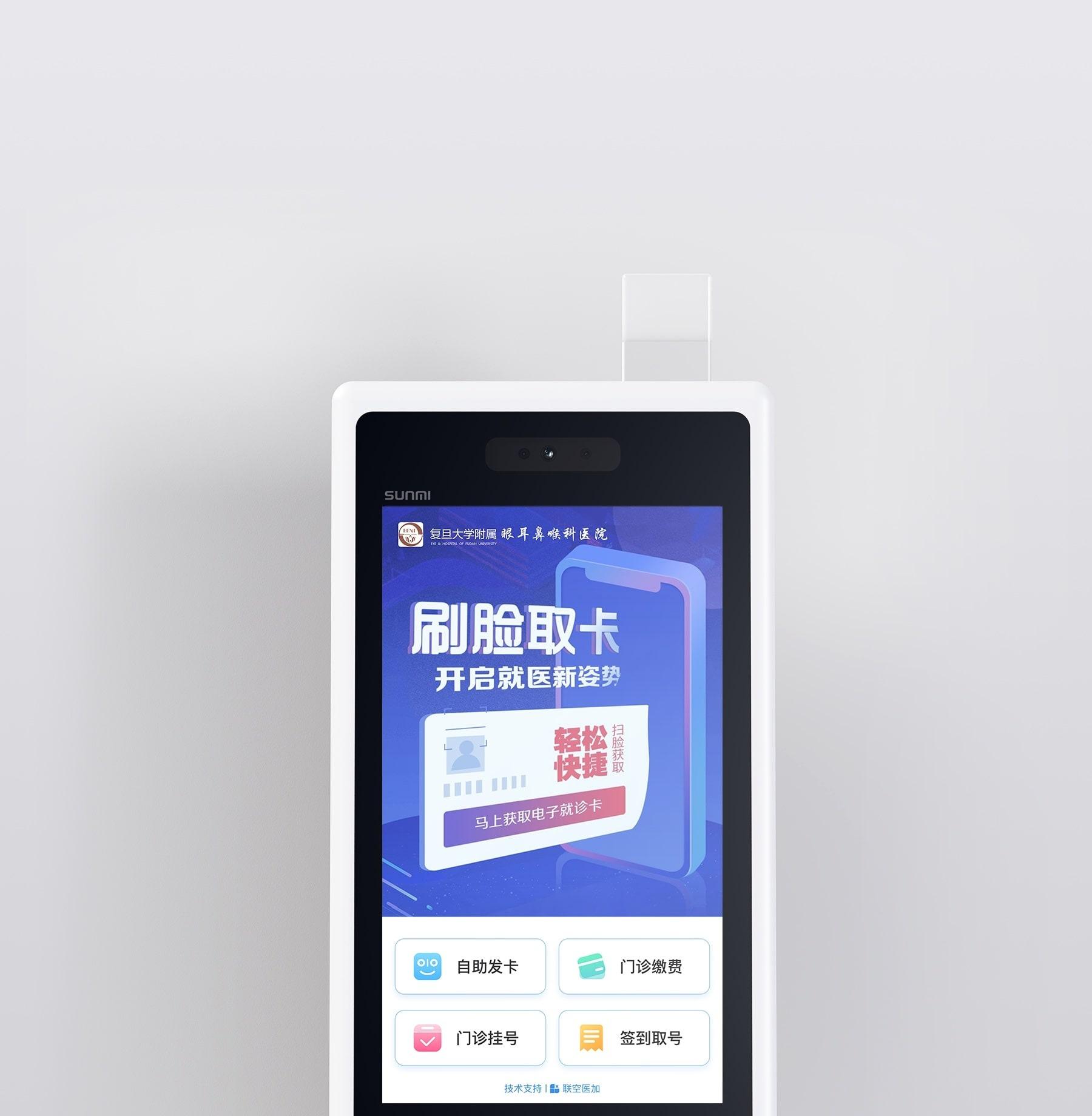

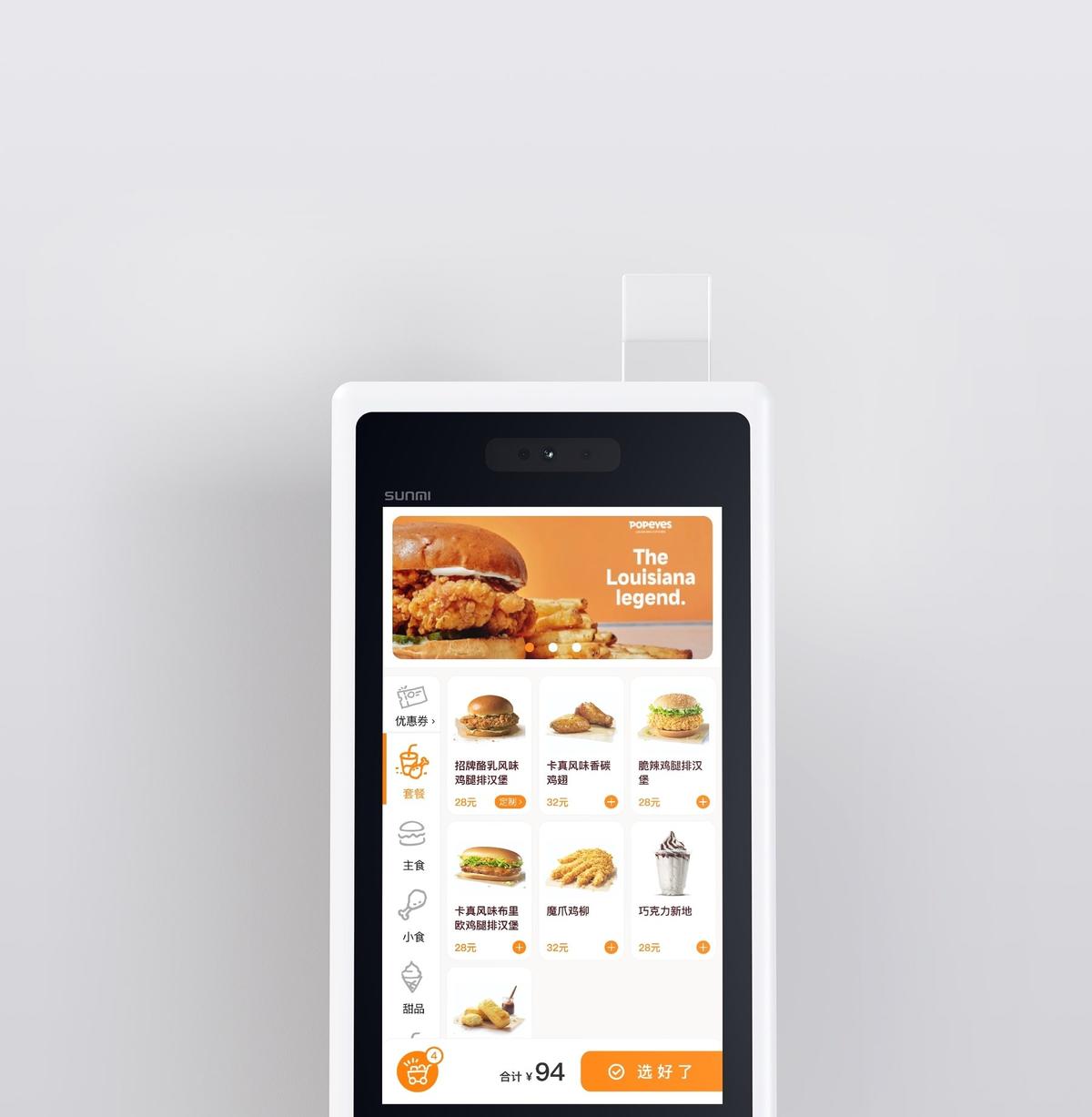

Display

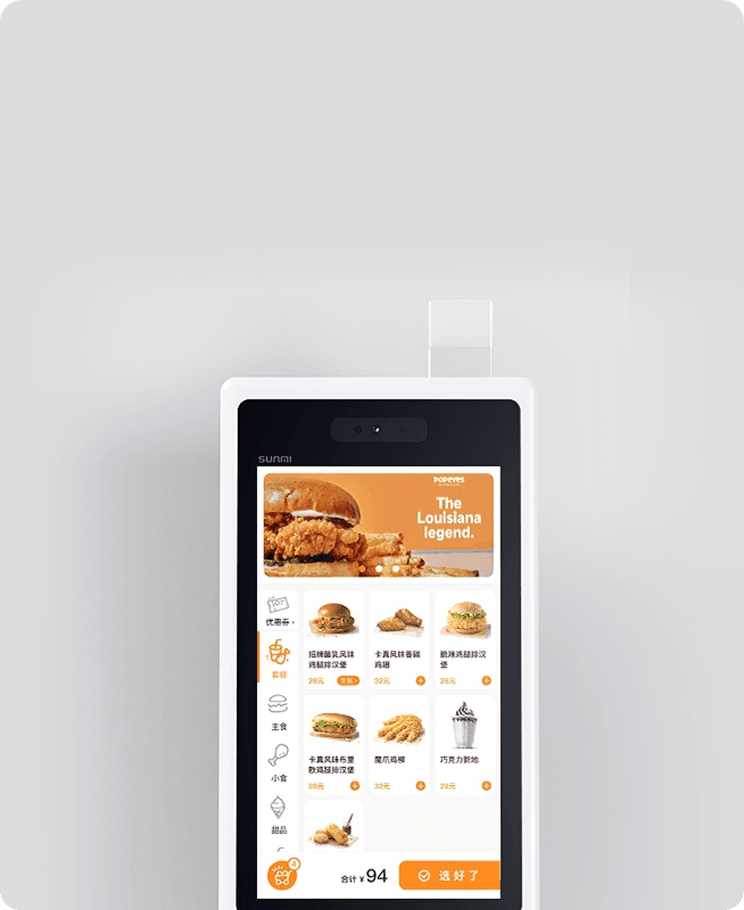

23.8" FHD, 1920*1080 Capacitive multi-touch screen

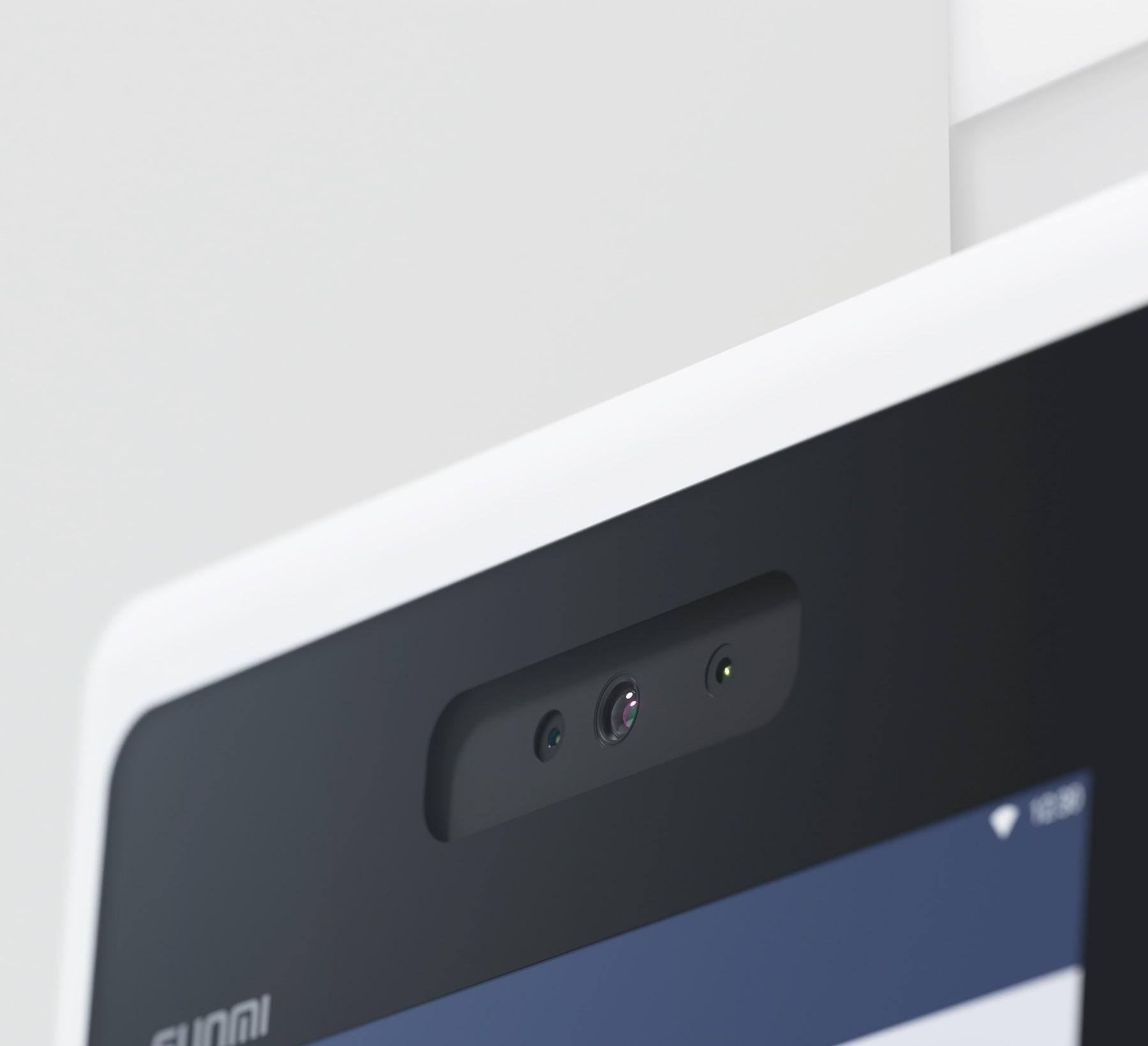

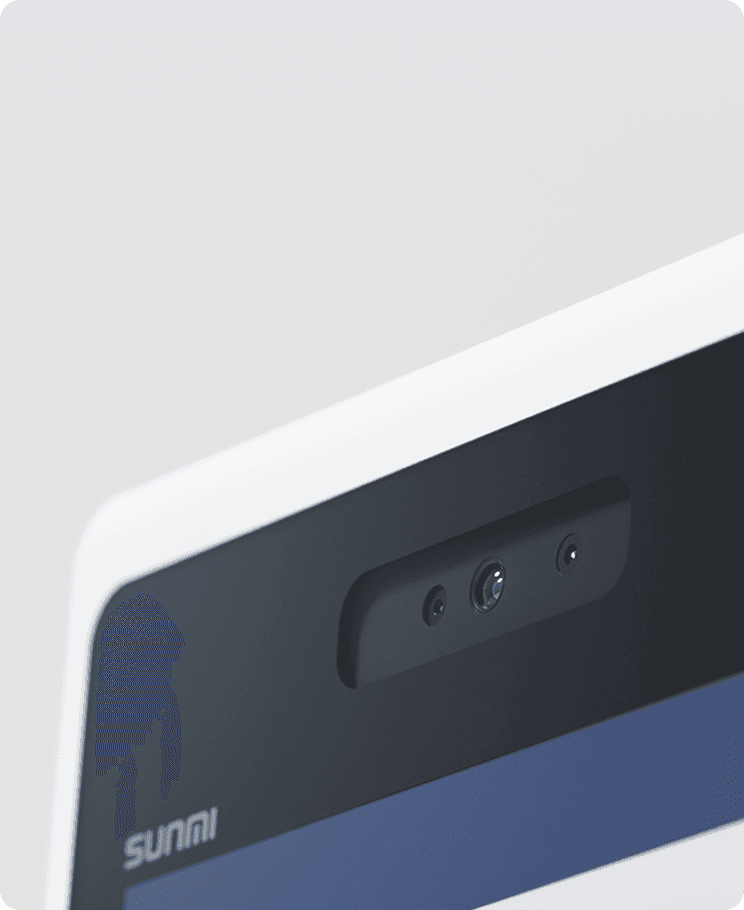

Camera(Optional)

3D facial recognition camera

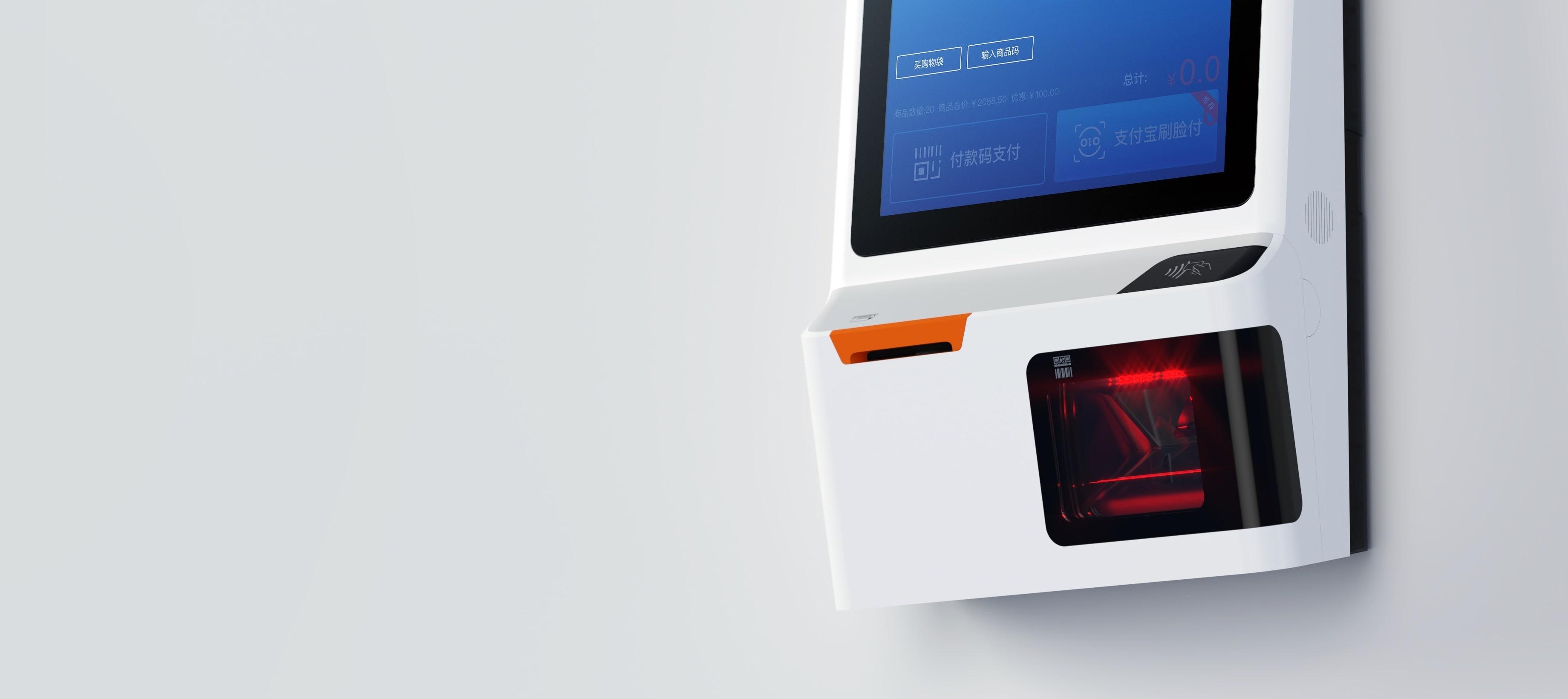

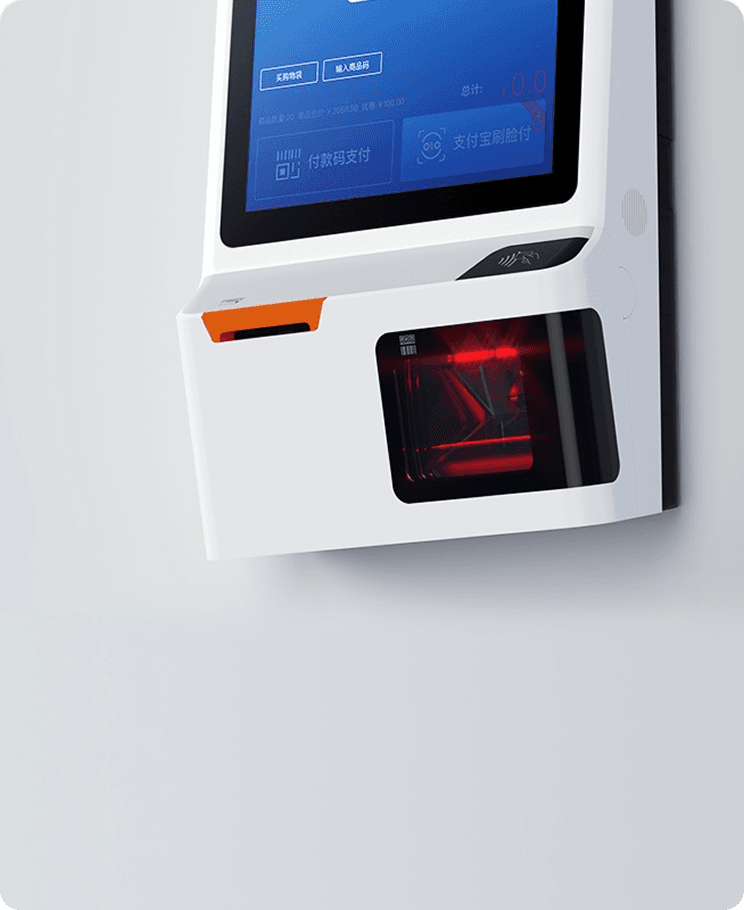

Scanner

Support 1D/2D mobile and printed barcodes or support 1D/2D mobile barcodes

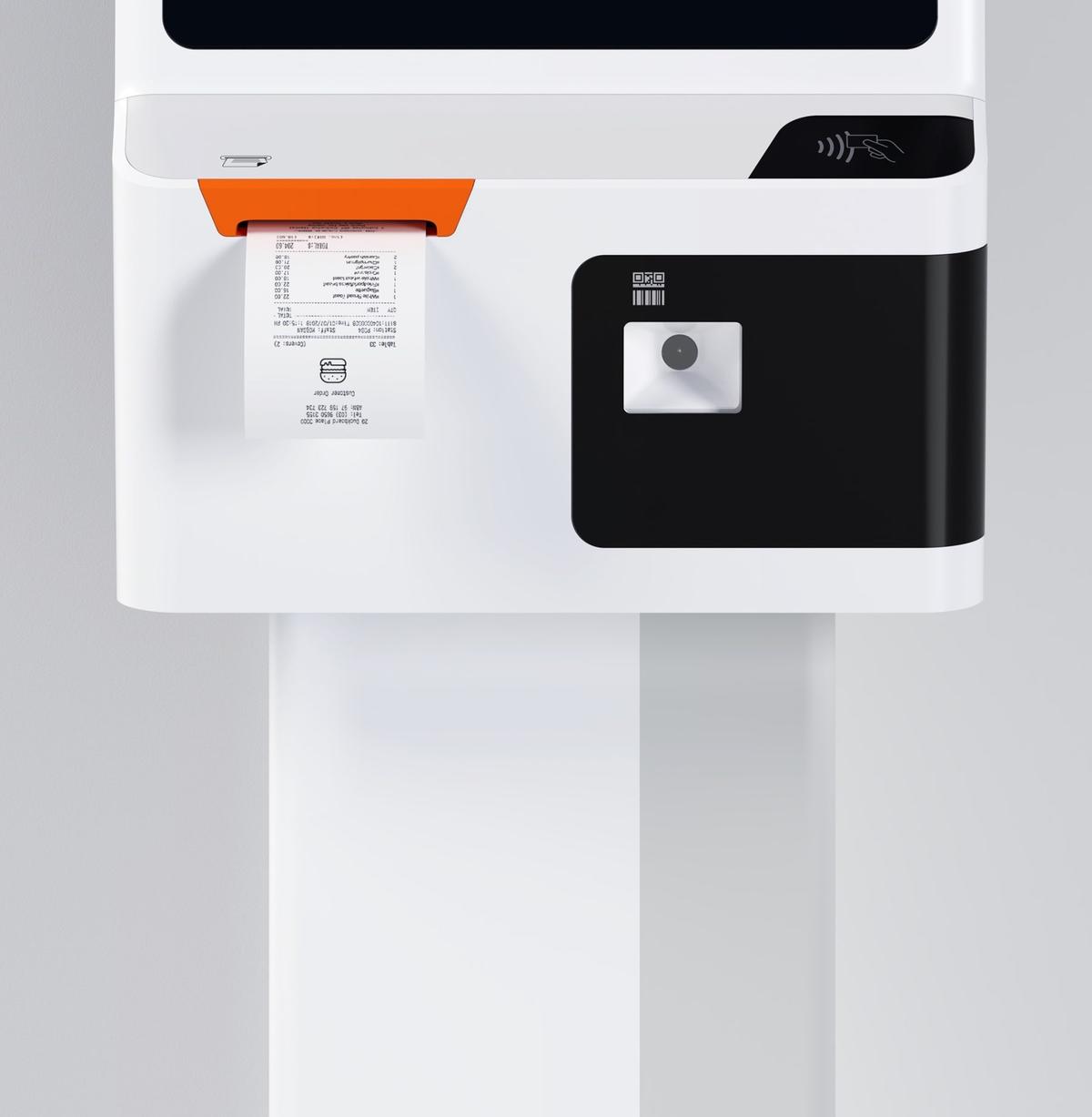

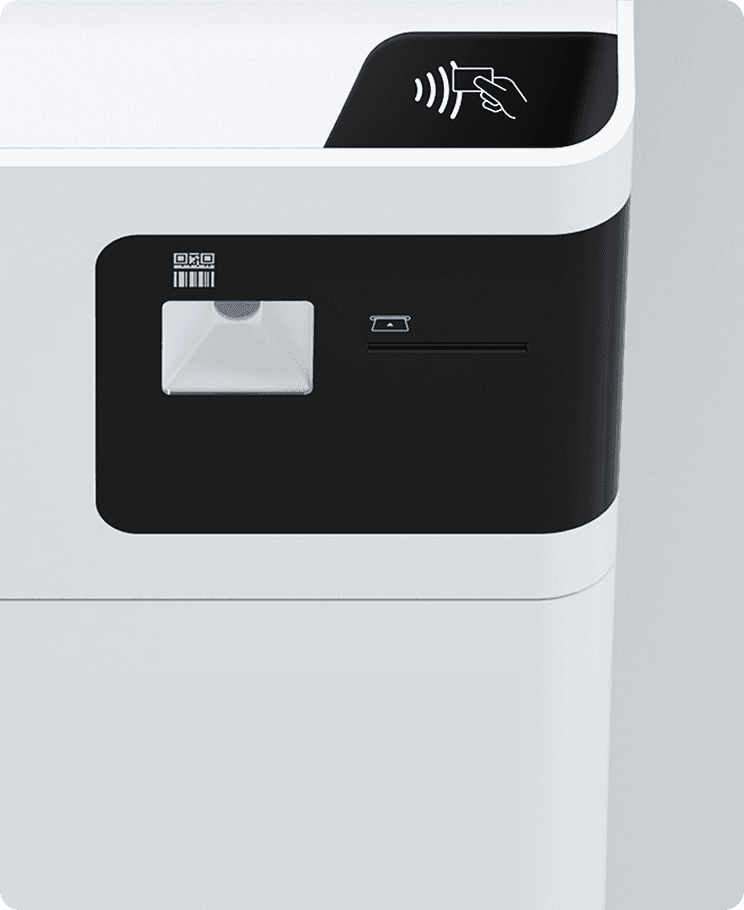

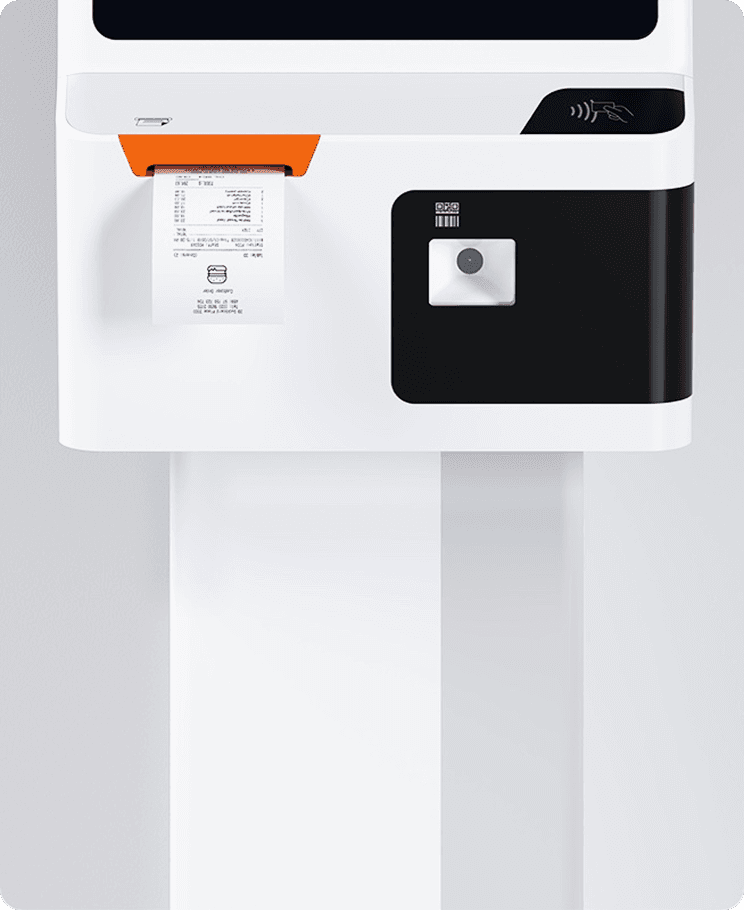

Printer

Built-in 80-column thermal printer with auto cutter Print speed: 250mm/s; Paper roll:φ80mm Support 58mm width thermal paper(optional)

PSAM Card Slot (Optional)

1*PSAM

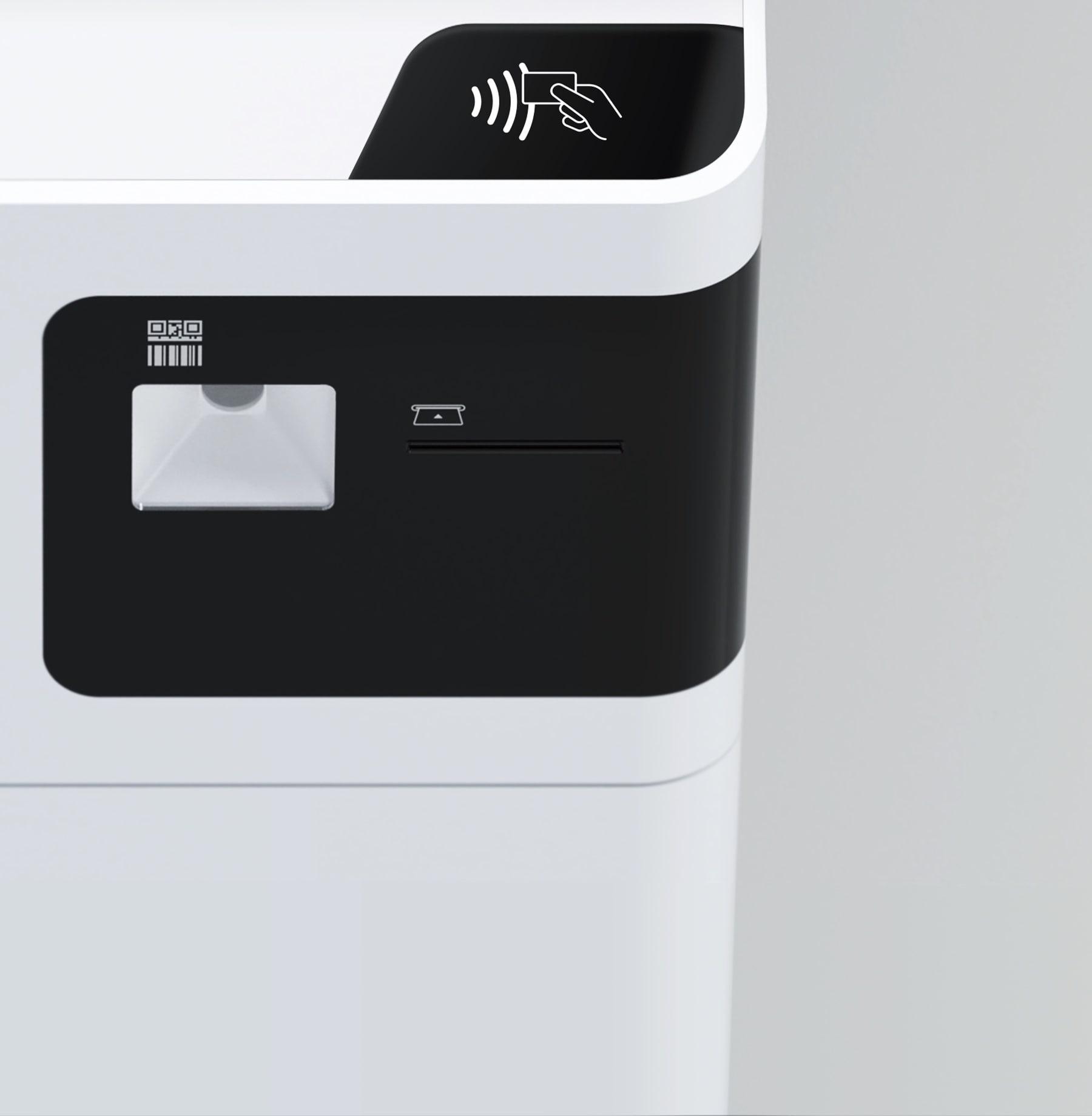

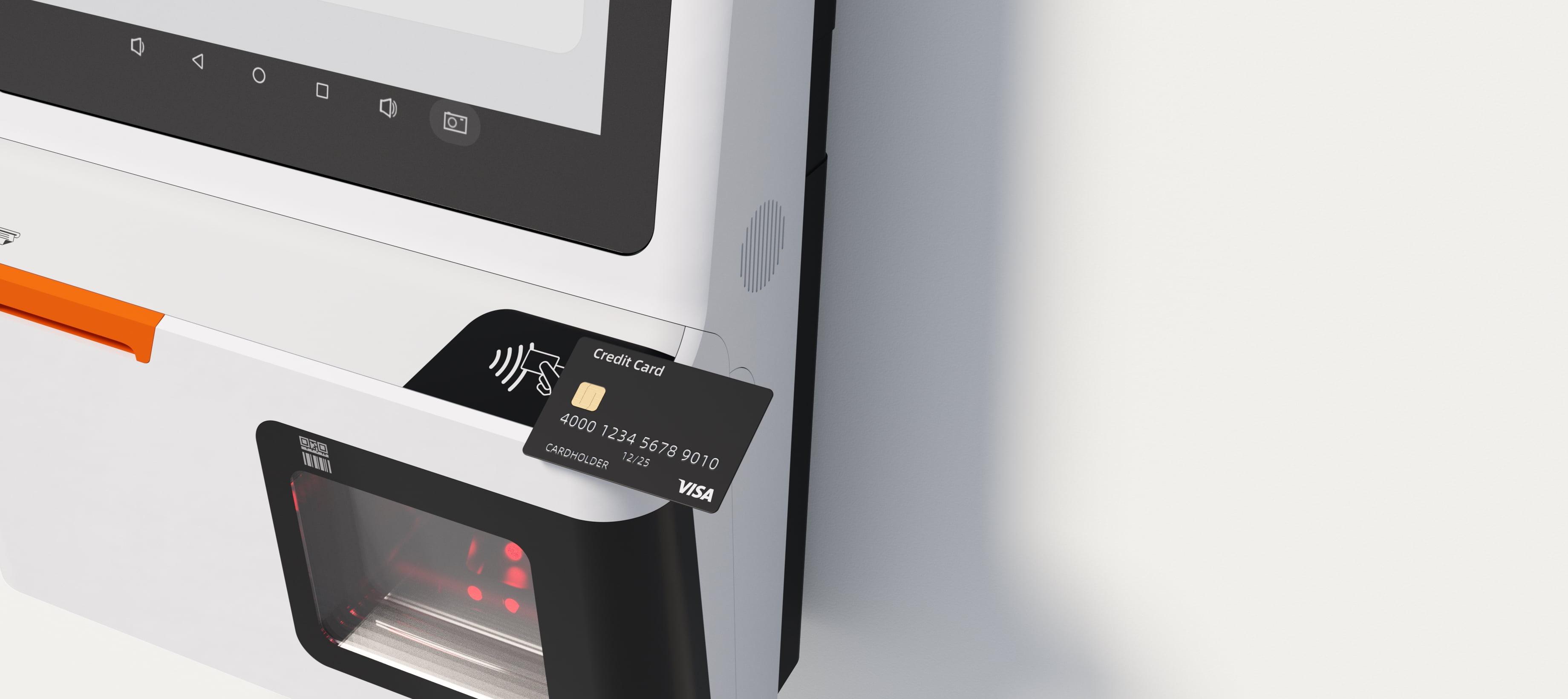

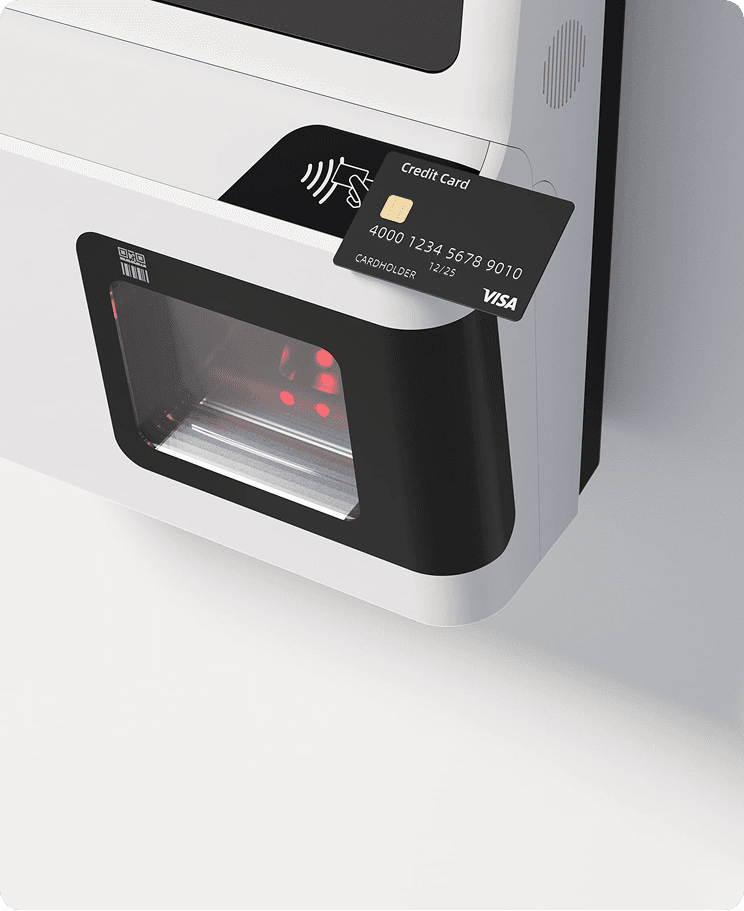

NFC Reader

Config 1: Support Mifare 1 card(S50,S70) and lS0 14443A CPU card Config 2/3: Support lD card, Mifare 1 card(S50,S70) and lS0 14443A CPU card

Buttons

1*Power on/off button(lock screen button)

Bluetooth

Bluetooth 2.1/3.0/4.2 BLE

Wi-Fi

Config 1: 2.4GHz/5GHz/6GHz IEEE 802.11 a/b/g/n/ac/ax Config 2/3: 2.4GHz/5GHz IEEE 802.11 a/b/g/n

Power Adapter

Input: AC100~120V/AC200~240V Output: DC 12V/24V

LAN

100/1000M Self-adaptive

External Memory

1* MicroSD (TF), up to 128G

Ports

5*USB TypeA port, 1*Rj45 LAN port, 1*Audio Jack, 1*Micro USB debug port, 1*HDMI port

Environment

Operating temp.: 0 ~ 40°C; Storage temp.:-20°C ~ 55°C

Speaker

2*3W

MIC

1*MIC

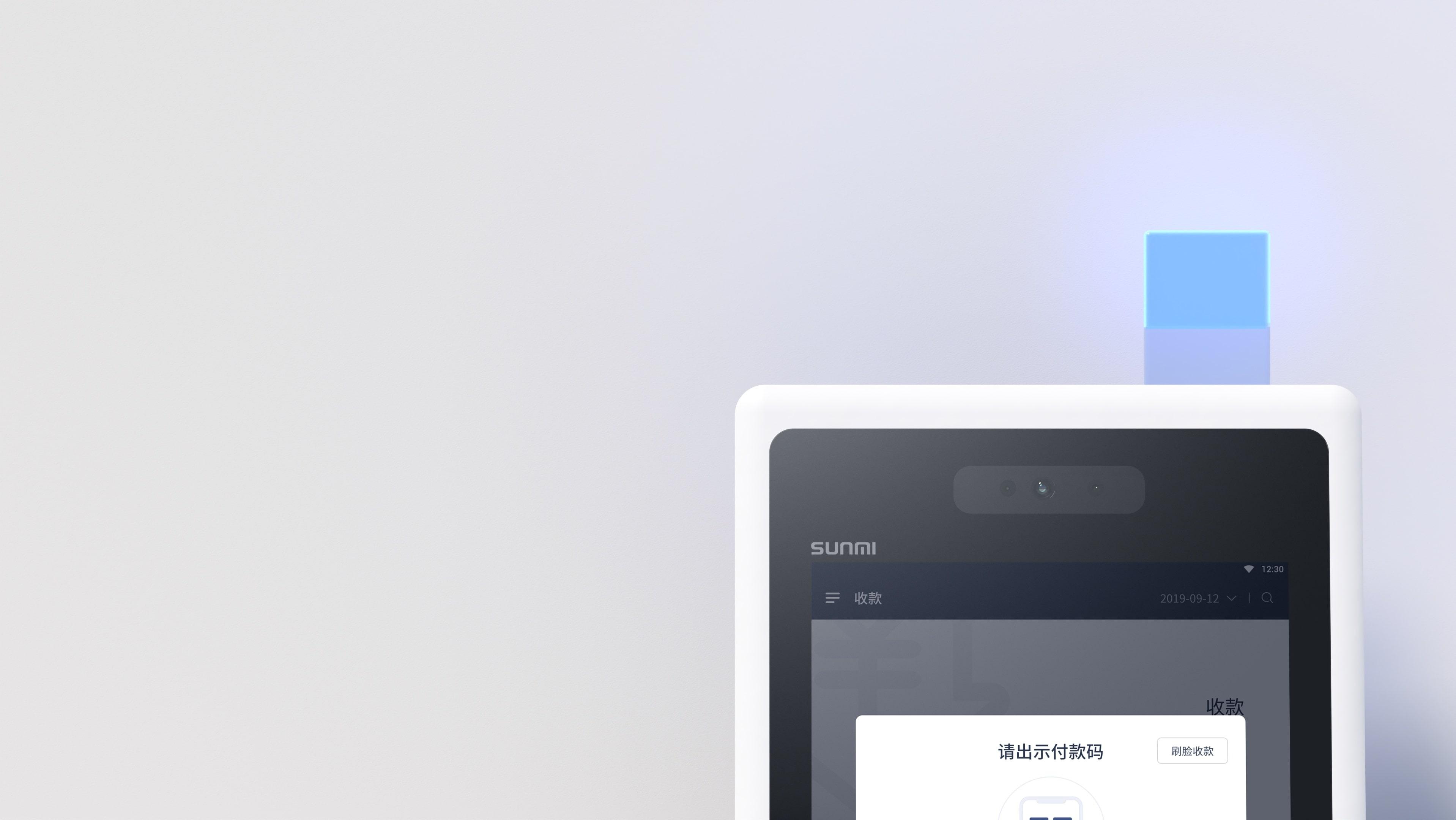

Indicator Light

7 colors

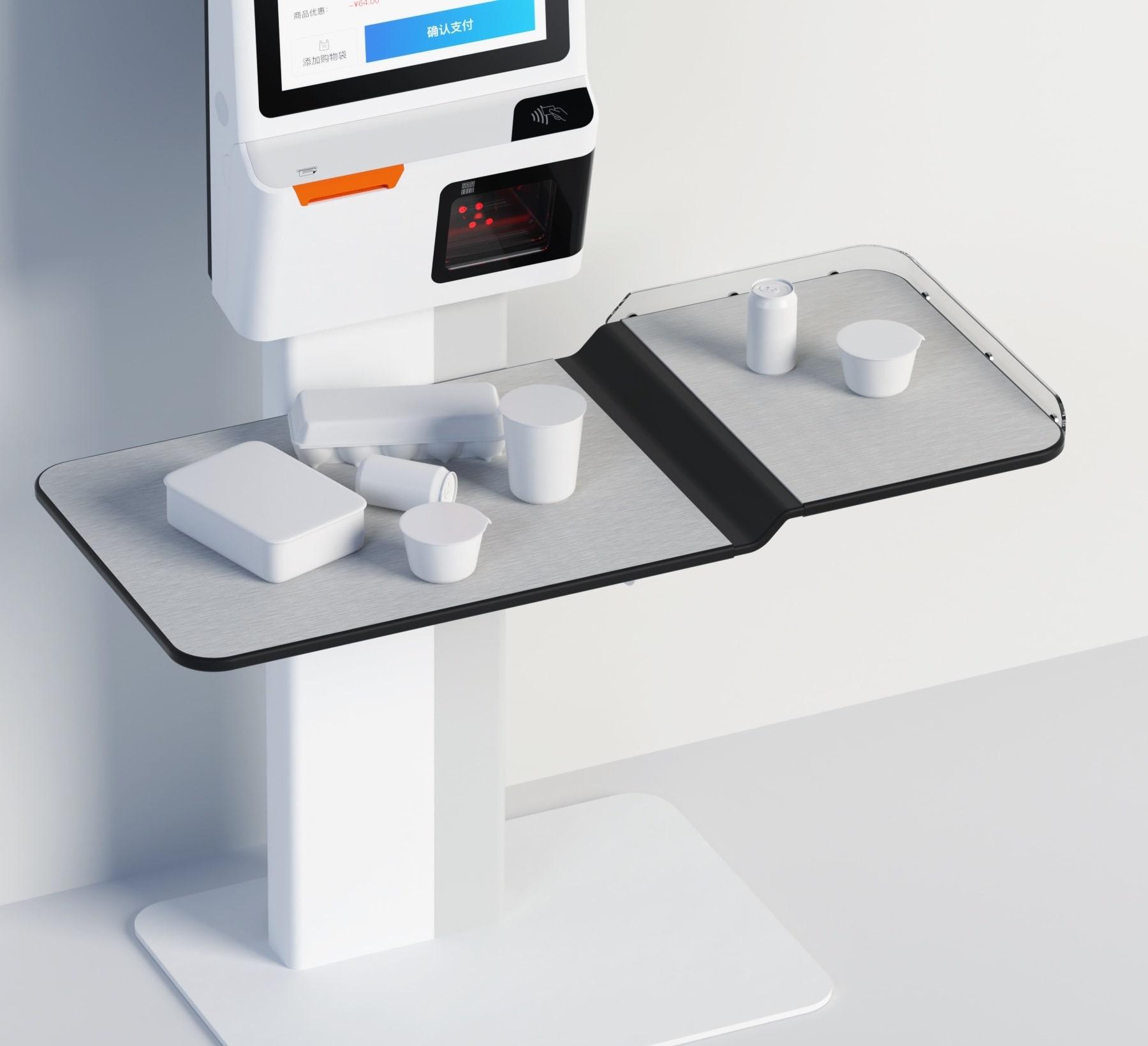

accessories

NFC, POS bracket, shopping bag hanger

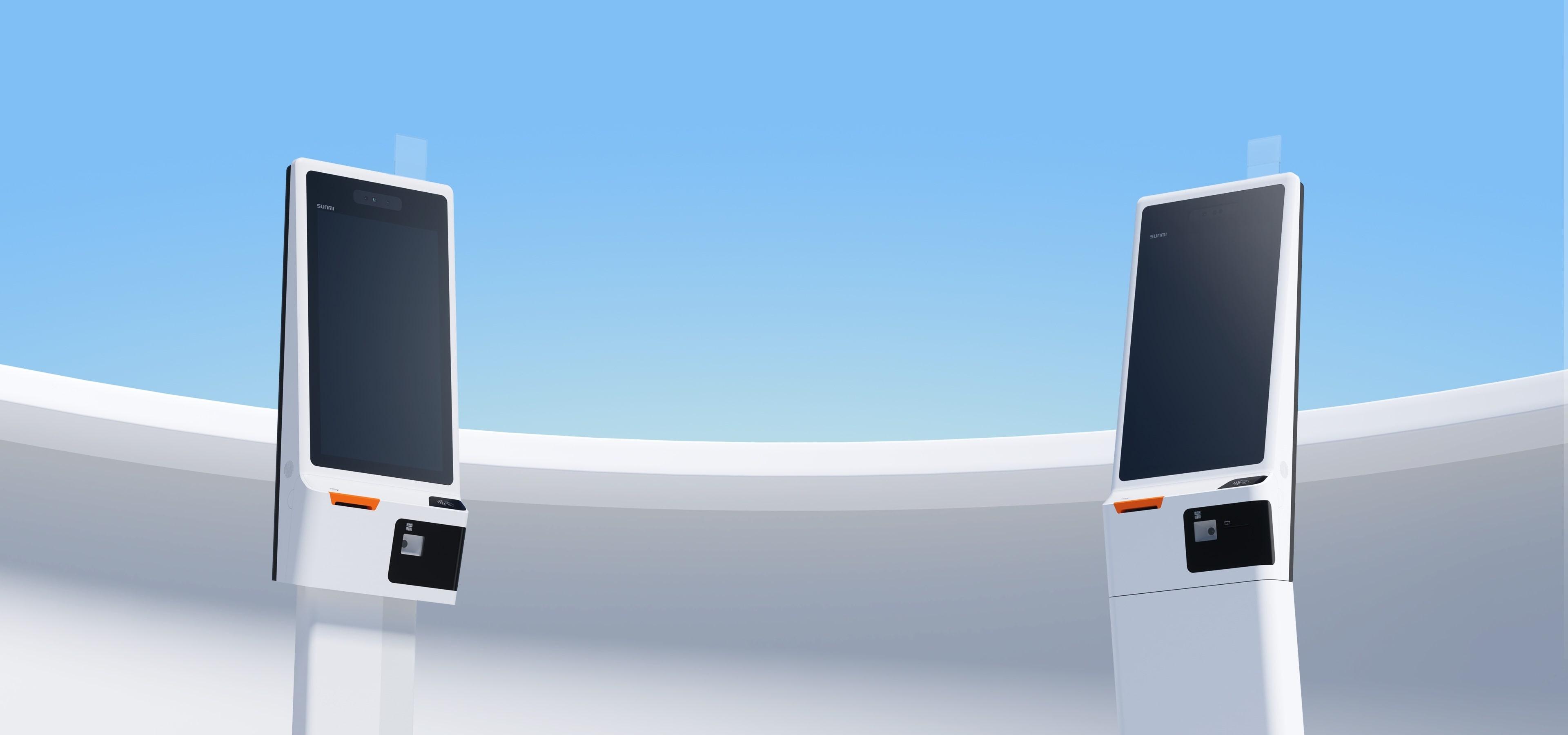

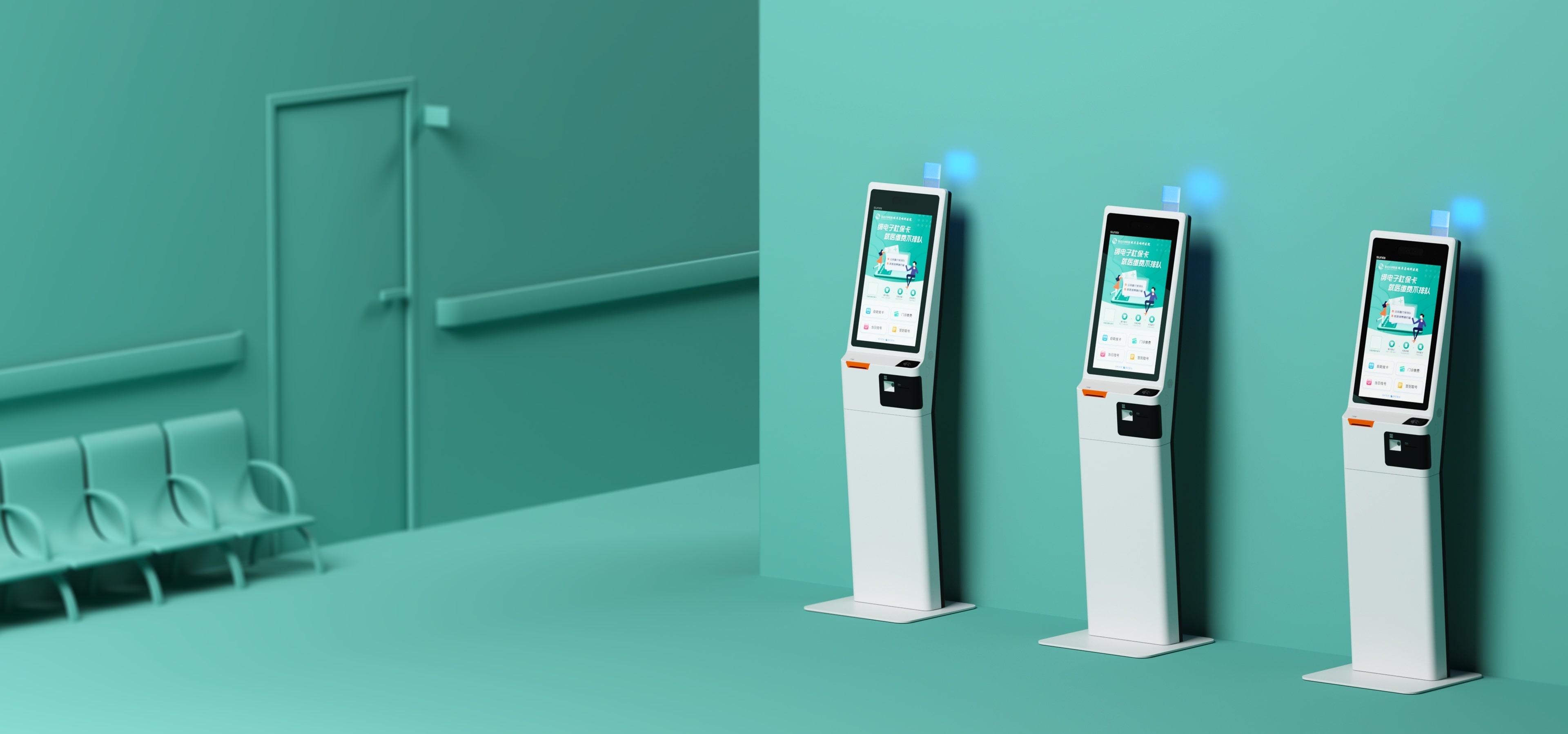

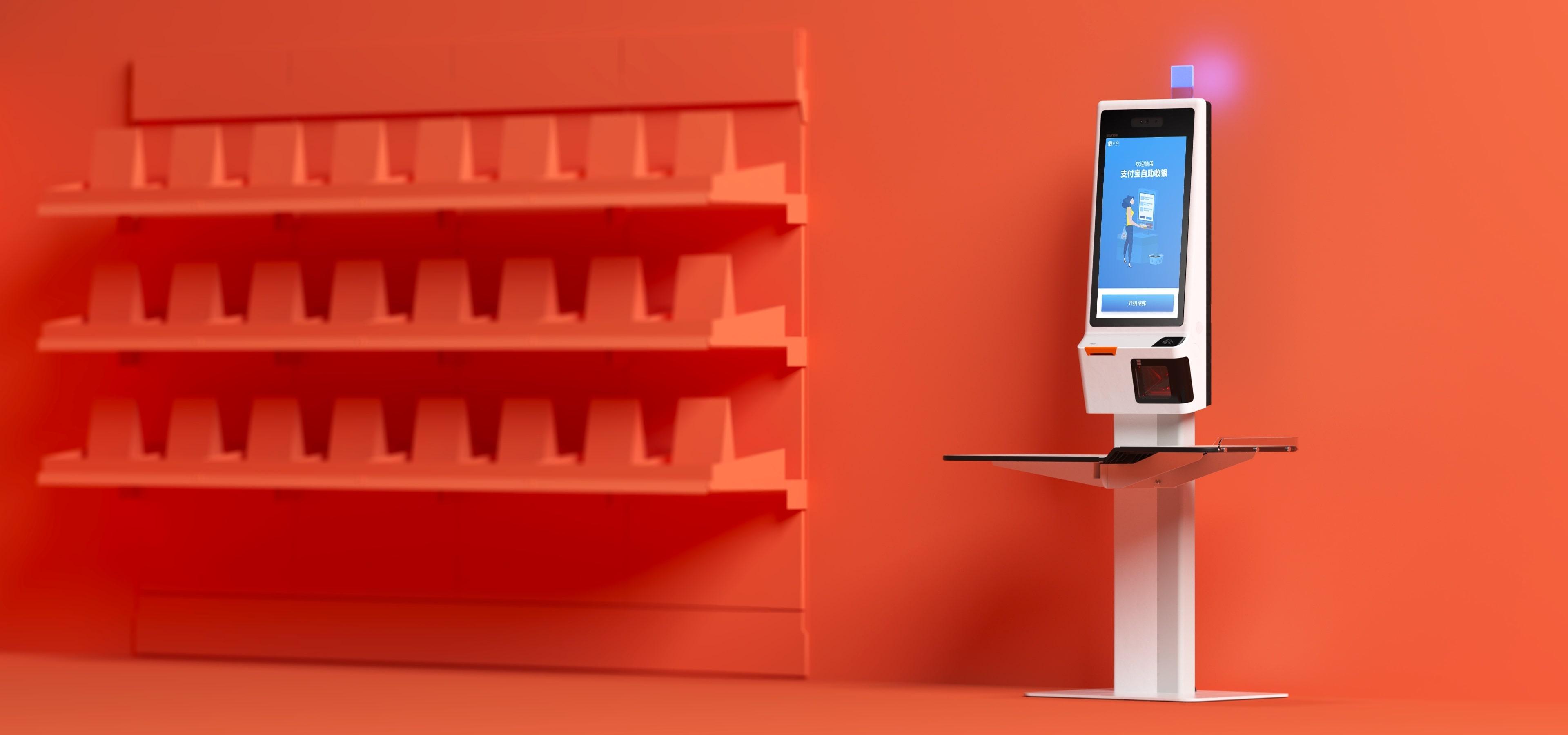

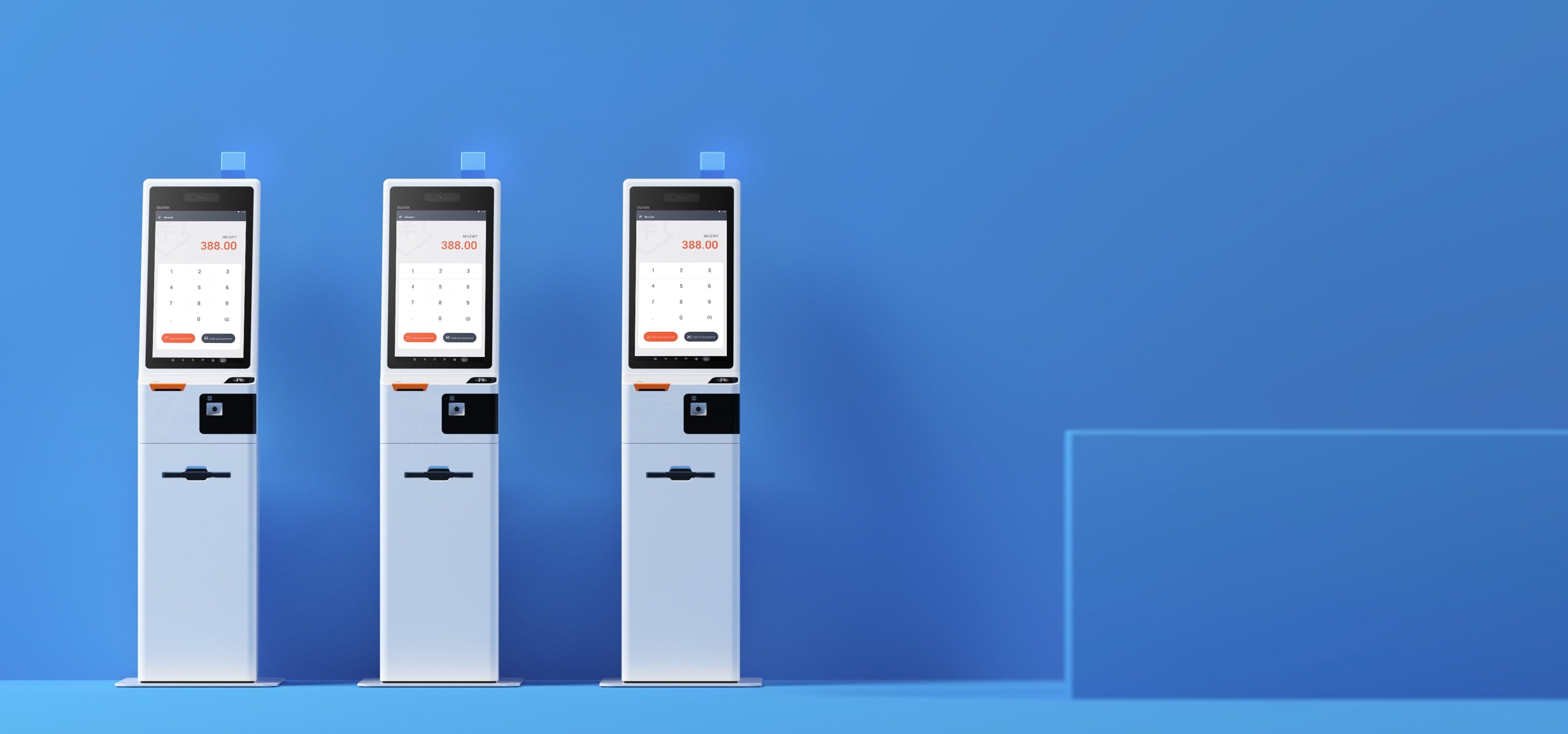

Dimensions

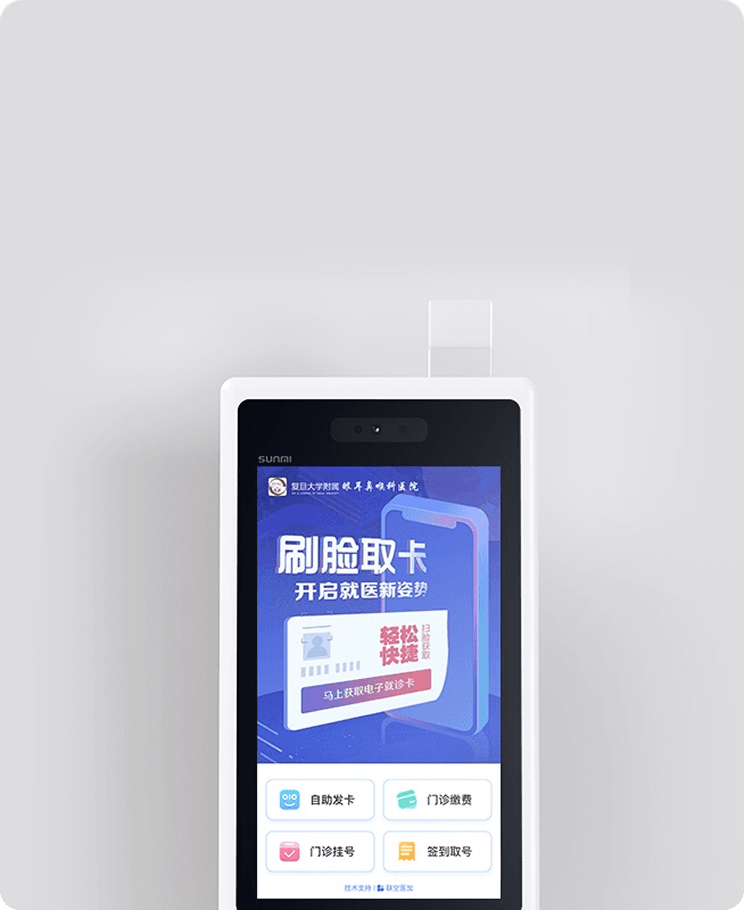

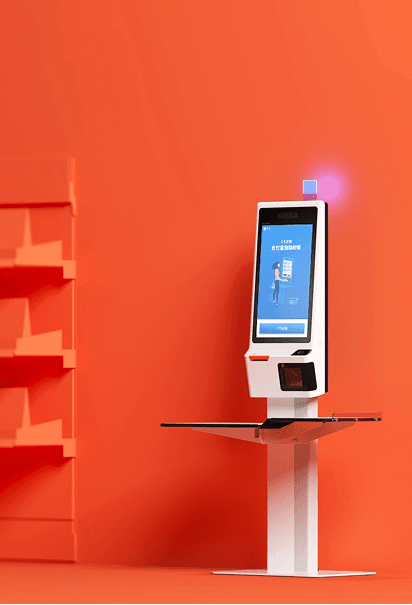

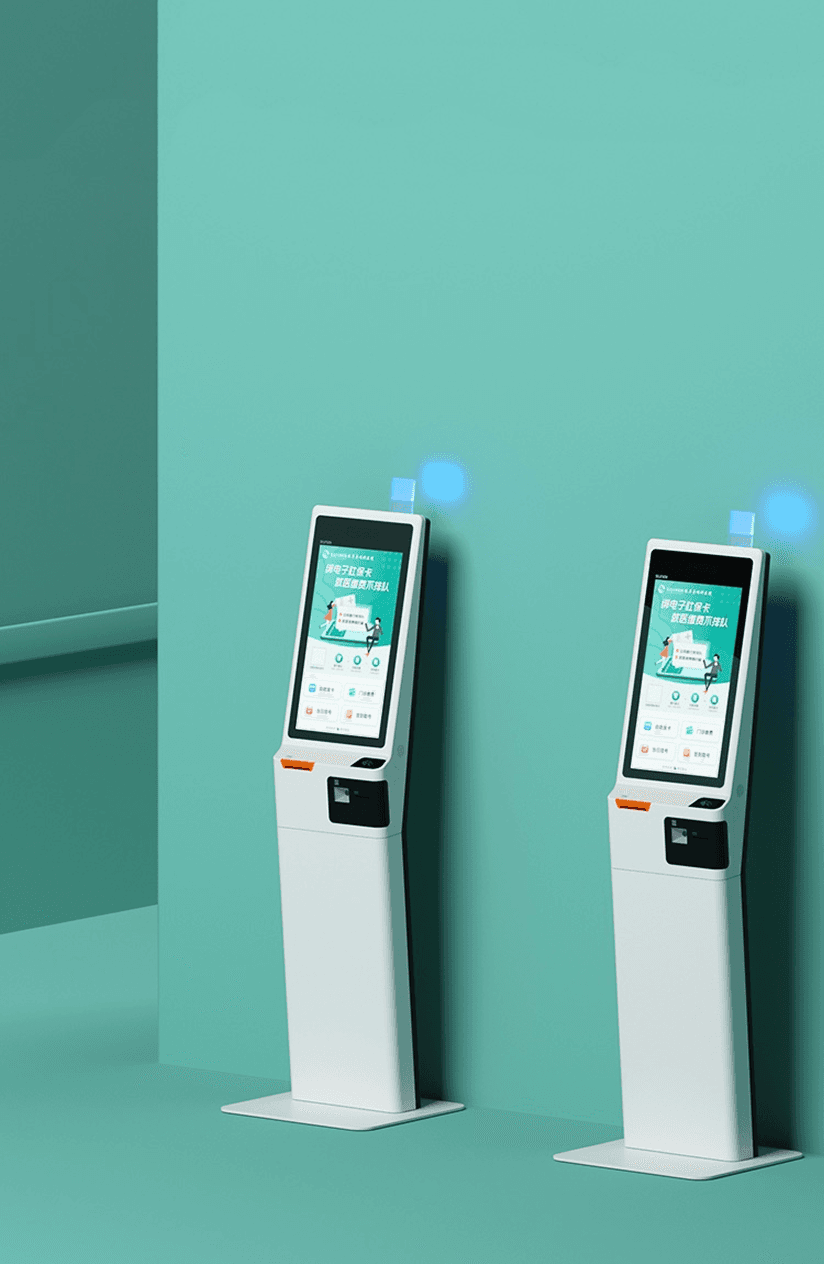

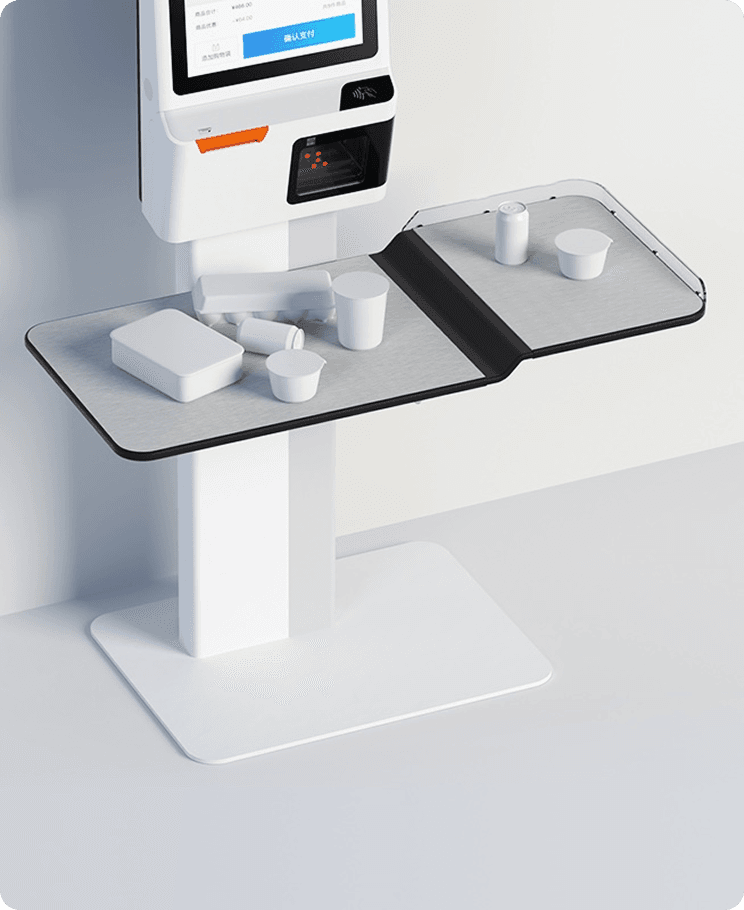

Wall-mounted: 394*171*1017mm Floor-standing with table: 1018*645*1850mm Floor-standing: 540*490*1850mm Healthcare Version (Scalable): 540*490*1810mm

Total Weight

Wall-mounted:16.5Kg Floor-standing with table: 58Kg Floor-standing: 45Kg Healthcare Version (Scalable): 50Kg
