Product Model

T8F1B/T8F1C

CPU

Octa-core, up to 2.2GHz

OS

SUNMI OS 4.0 (Based on Android 14) Support Android Version Upgrade

Memory

4GB RAM + 64GB ROM 6GB RAM + 128GB ROM Extended Micro SD Card Slot Up to 256GB

Displays

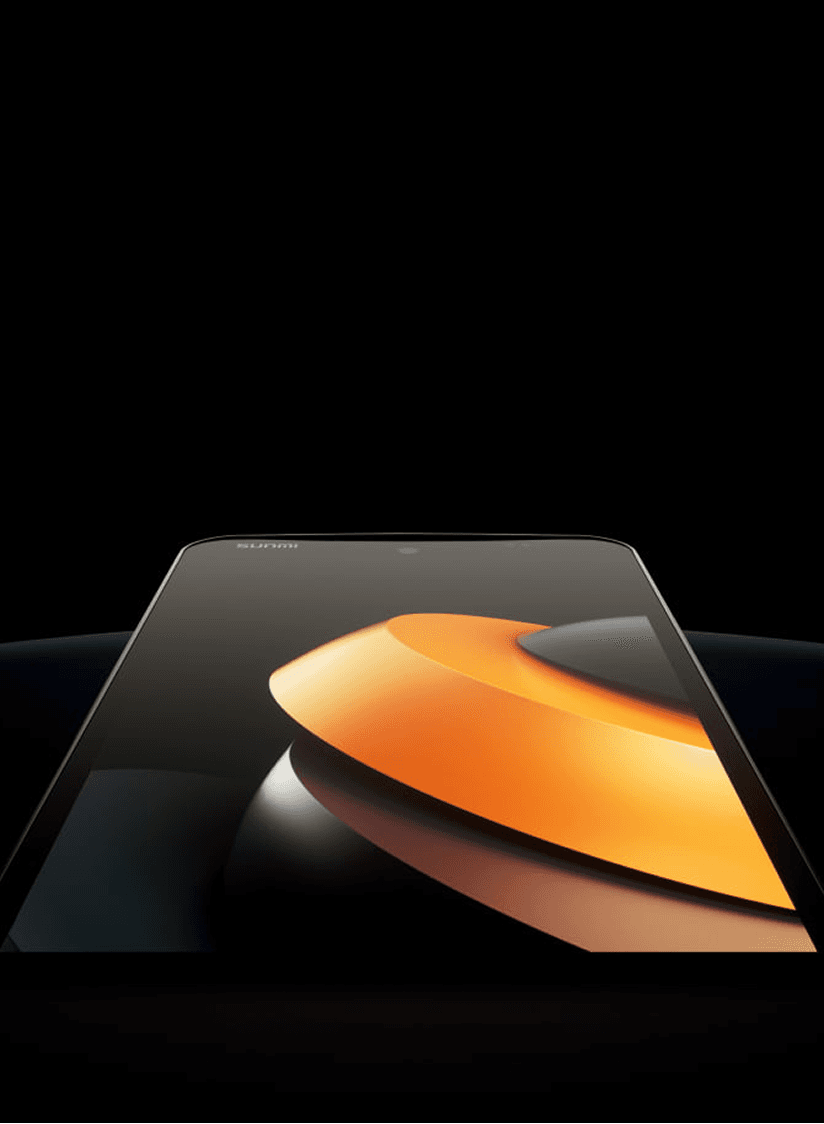

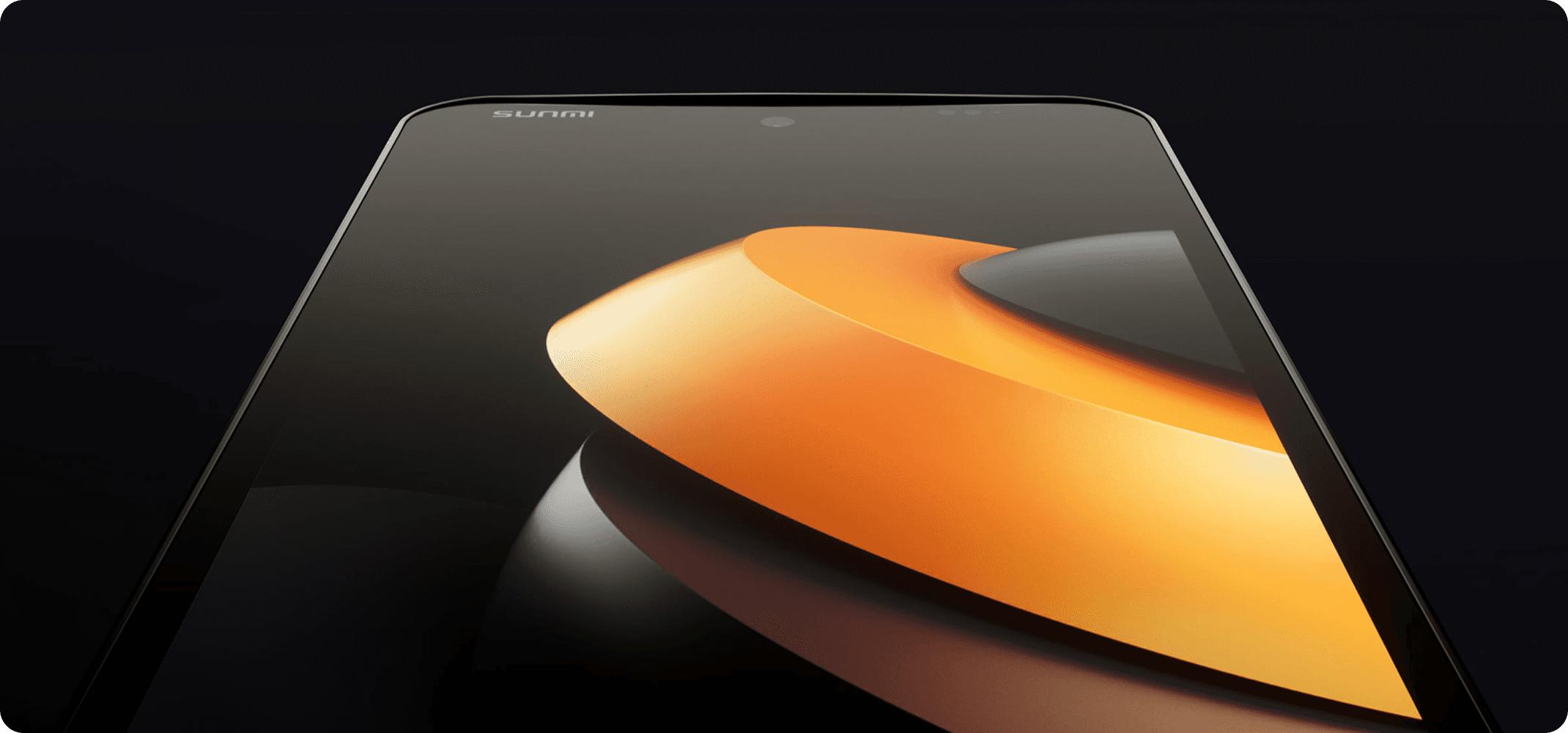

6.75"HD+, 720*1600 Pixels IPS Capacitive Multi-touch Screen, Anti-fingerprint Coating

GMS

Supported

Buttons

1*Power button (Fingerprint ID) 1*Custom button 1*Volume button 2*Scan button

Card Slots

1*Nano SIM + 1*Micro SD / 2*Nano SIM 1*Nano SIM + 1*eSIM+1*Micro SD (Optional) 1*PSIM (Optional)

eSIM

Supported (Optional)

Ports

1*Type-C 6*Pogo PIN at the bottom for connecting accessories 8*Pogo PIN on the back for connecting accessories (Optional)

Cellular

4G/3G/2G

Wi-Fi

5GHz/2.4GHz IEEE 802.11 a/b/g/n/ac

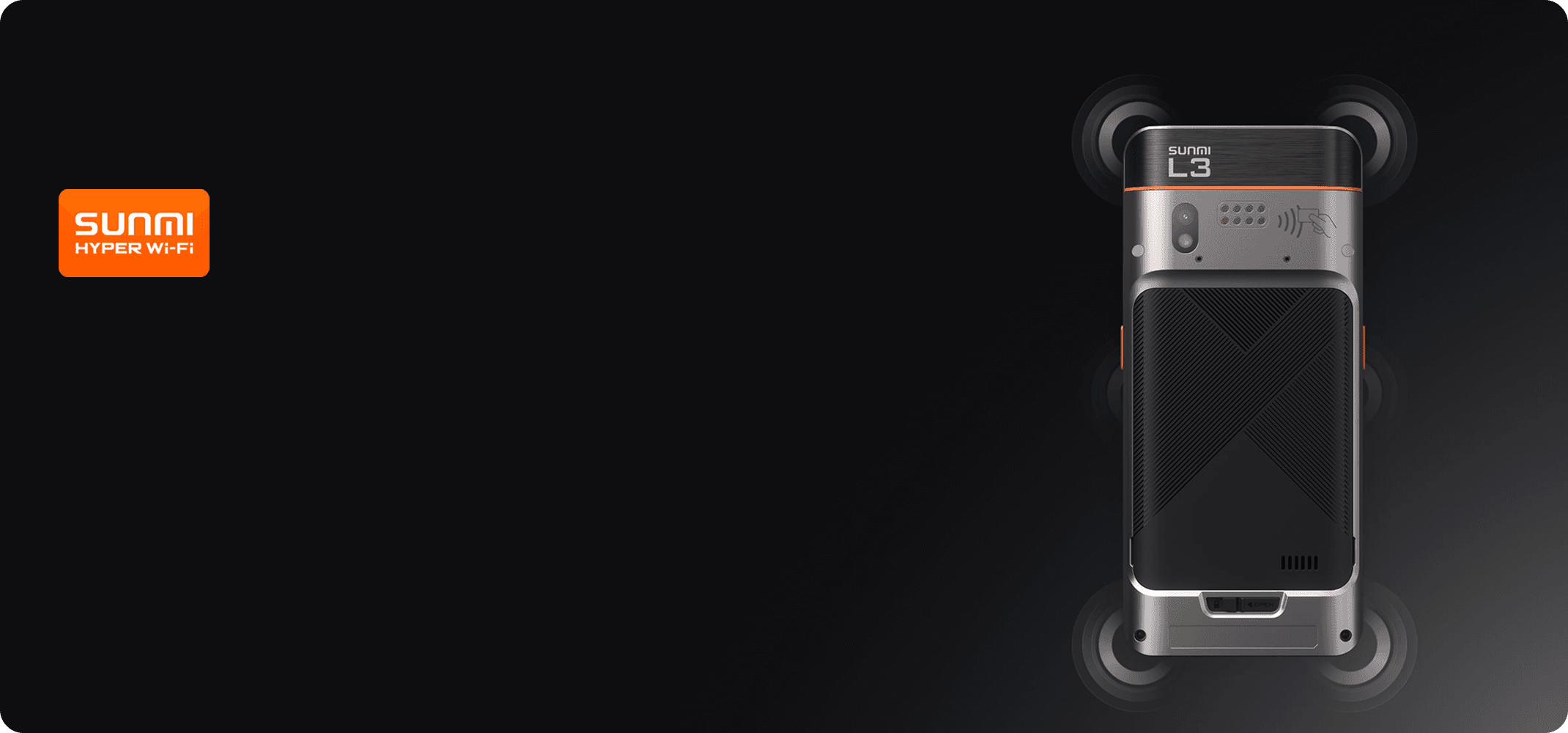

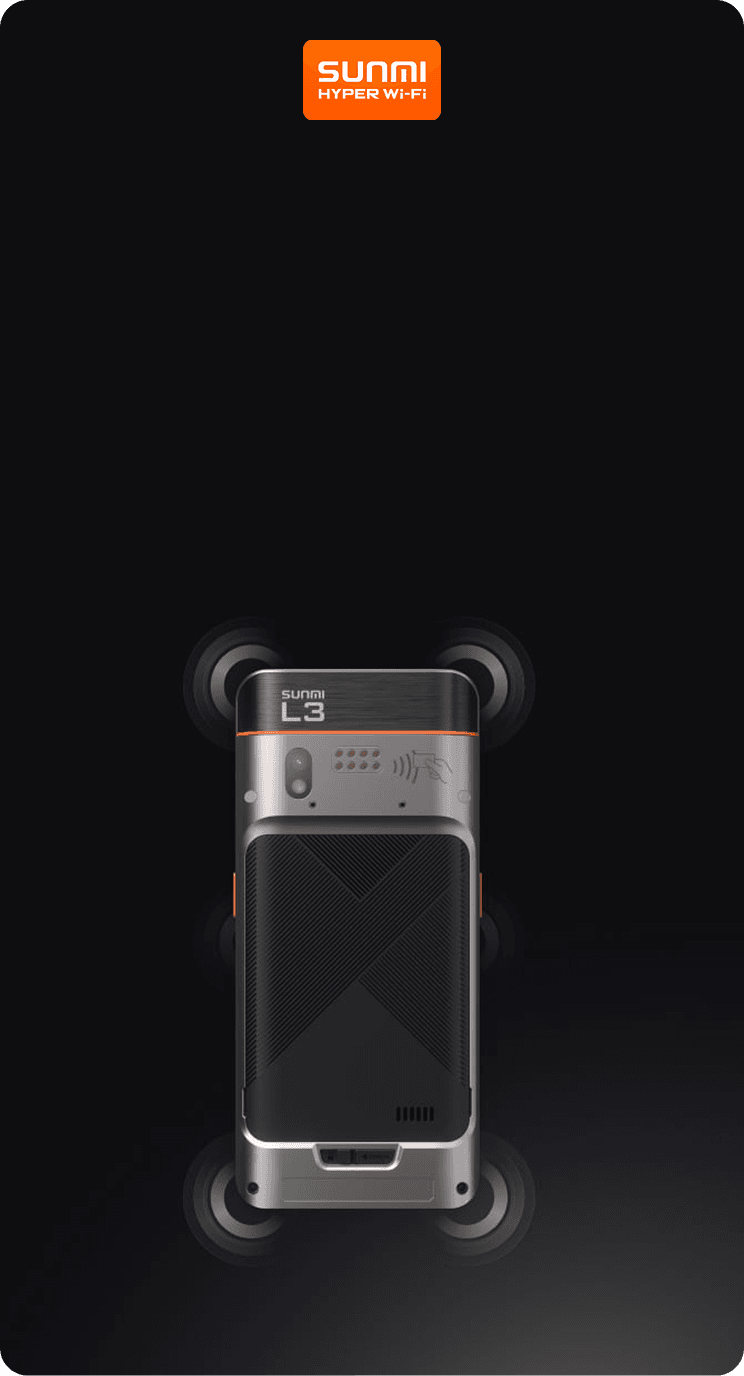

Hyper Wi-Fi

Supported (Optional)

Bluetooth

Bluetooth 5.2, Support BLE

Positioning

GPS/Glonass/Beidou/Galileo

Cameras

5MP FF Front Camera + 13MP AF Rear Camera

Scanner

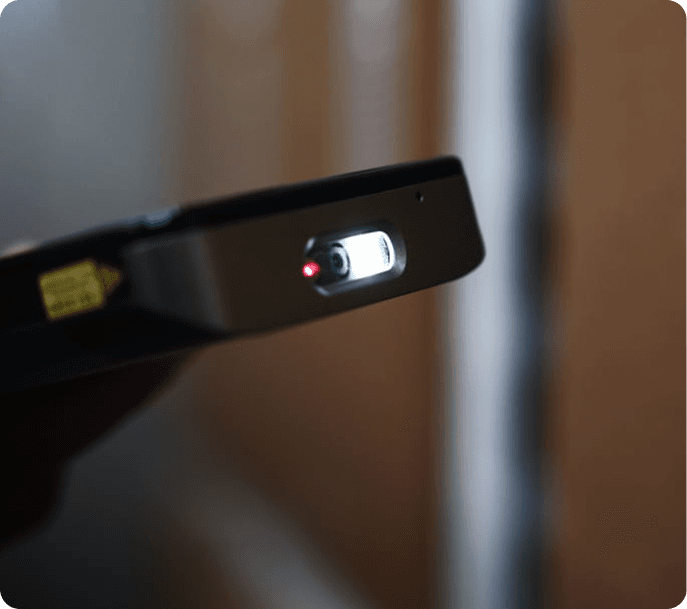

Professional Scan Engine (Optional)

NFC

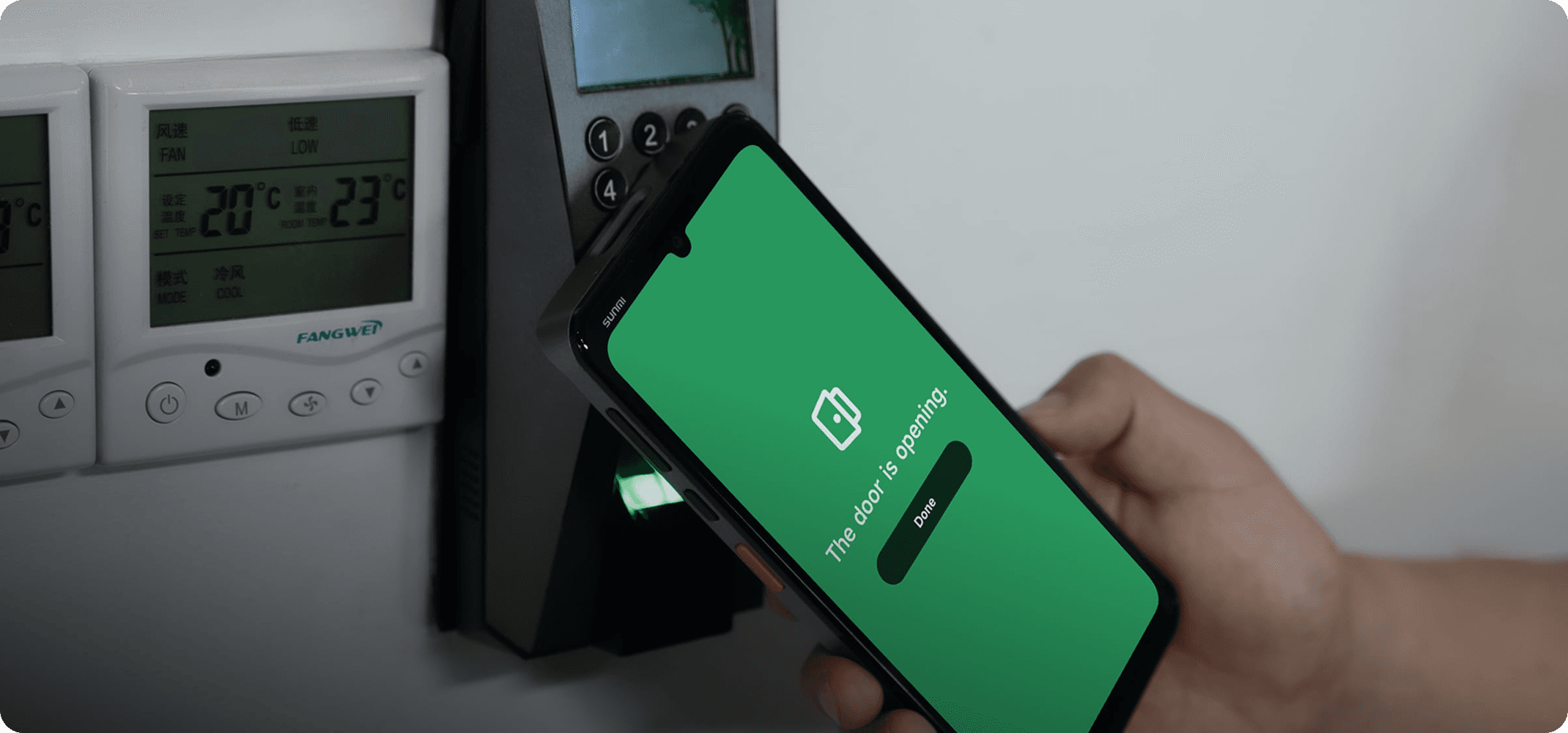

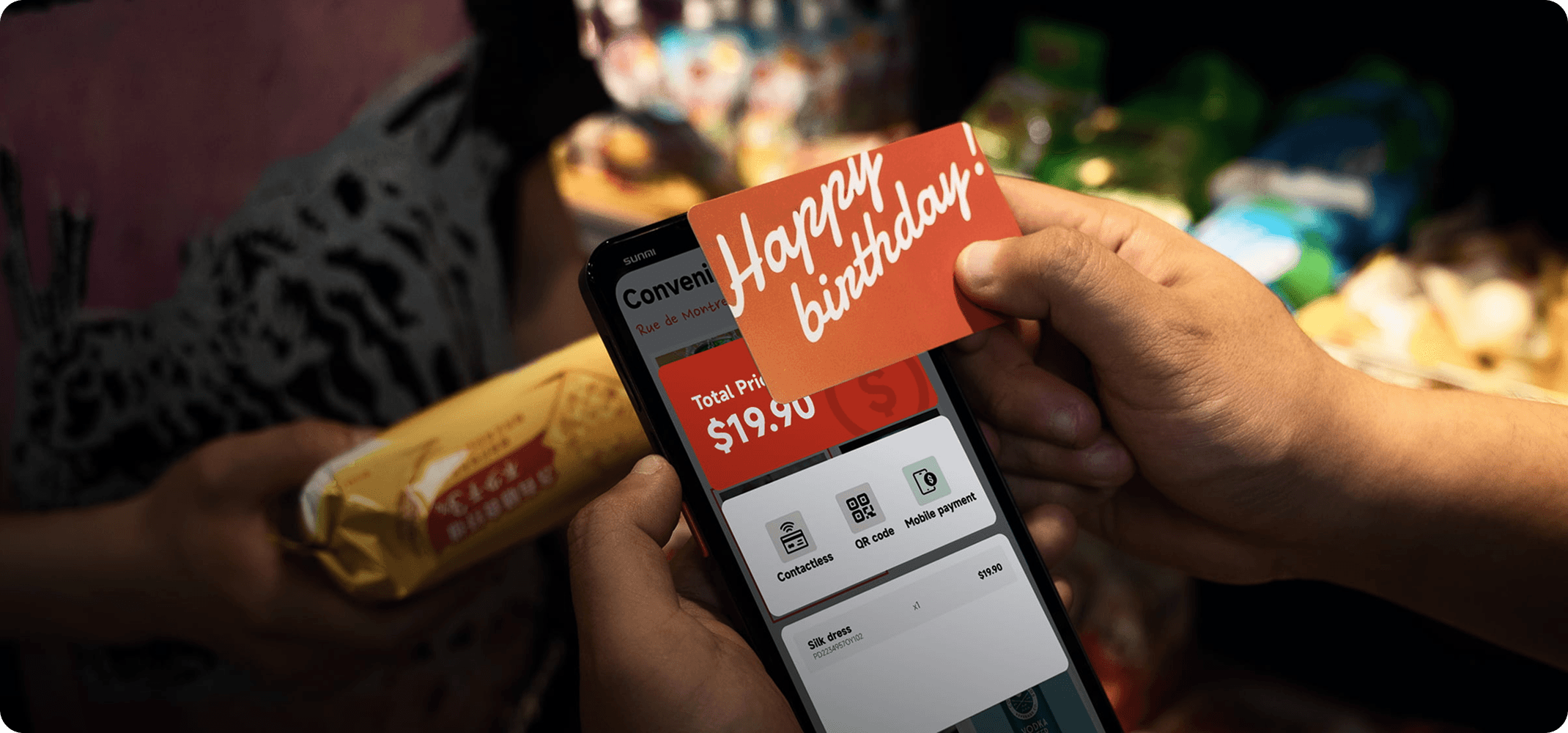

Tap on screen & Tap on the back (only non-rfid version) Support SoftPOS, EMVCo PCD L1 Certified Support ISO/IEC 14443 TypeA/B, Mifare, Felica, ISO 15693 Support NFC tag

UHF RFID

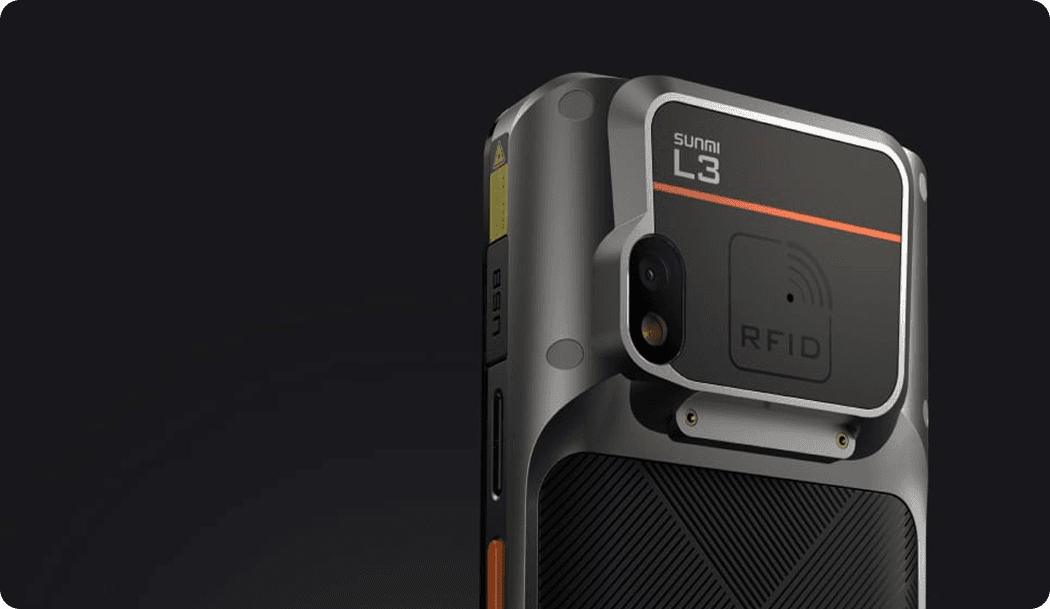

Supported (Optional): 902MHz~928MHz/865MHz~868MHz Frequency 5~33dB Output Power Max Read Range 4 m* Fastest Read Rate 300 tags/s *Data from SUNMI Lab

Audio

1*Speaker 2*Microphone

LED Indicator

Supported

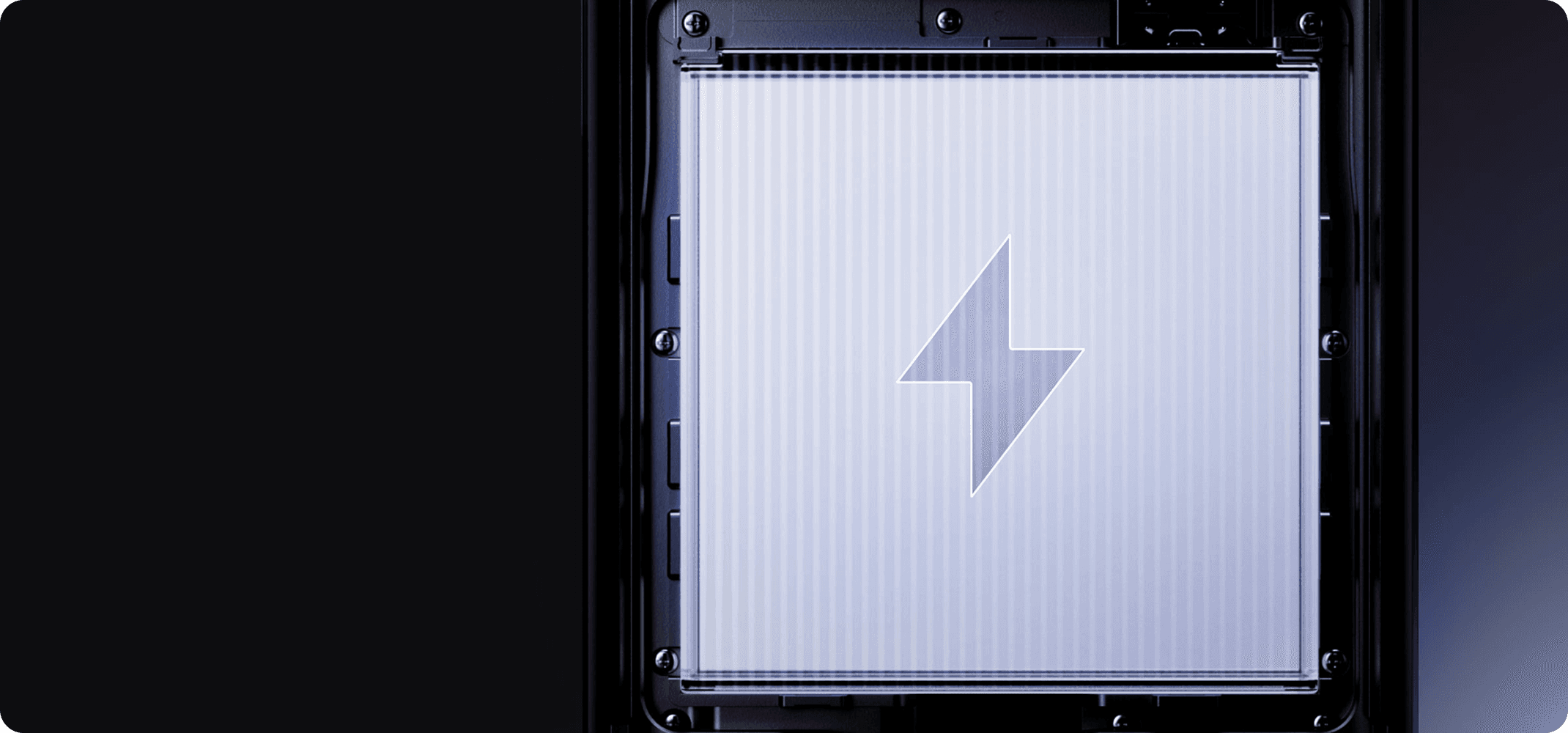

Battery

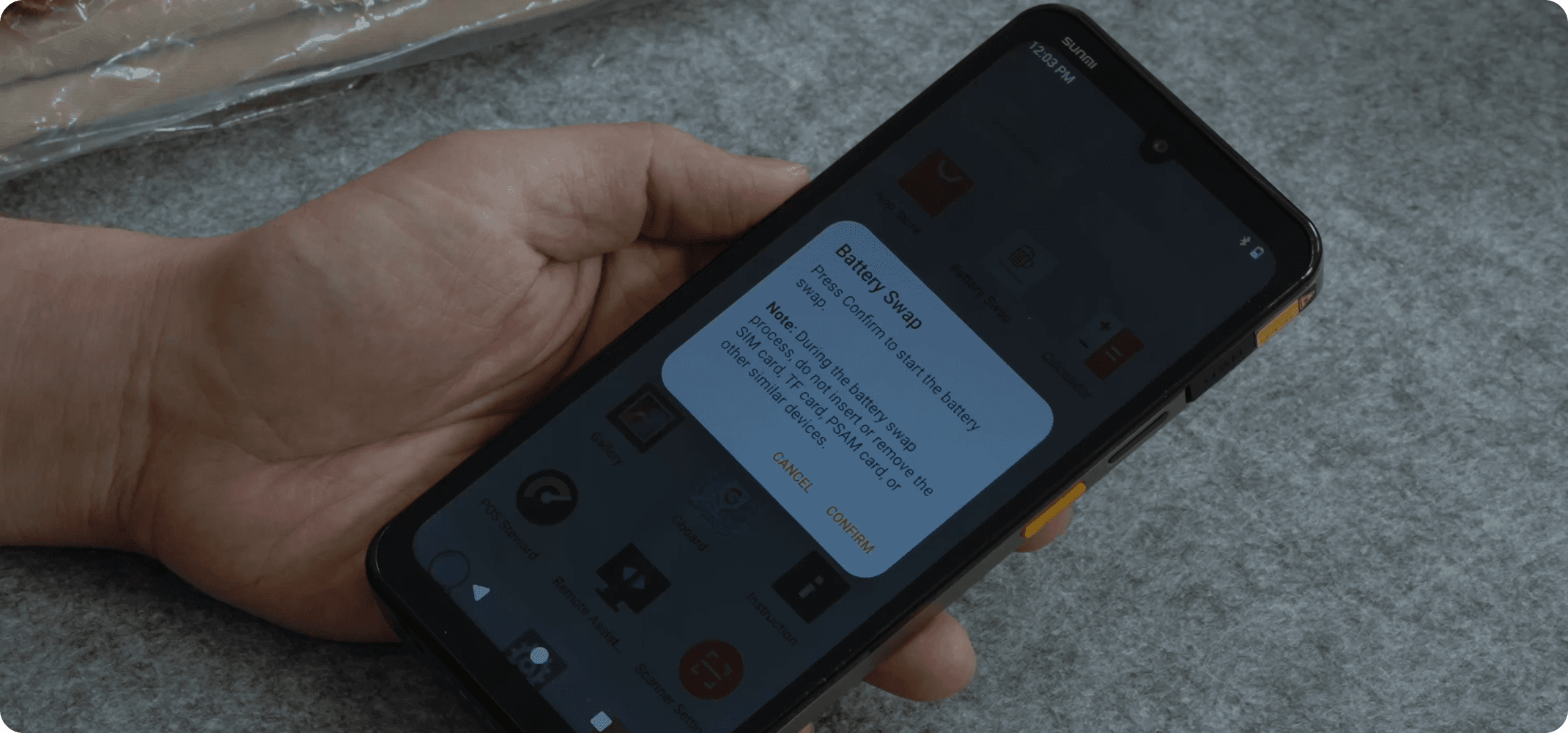

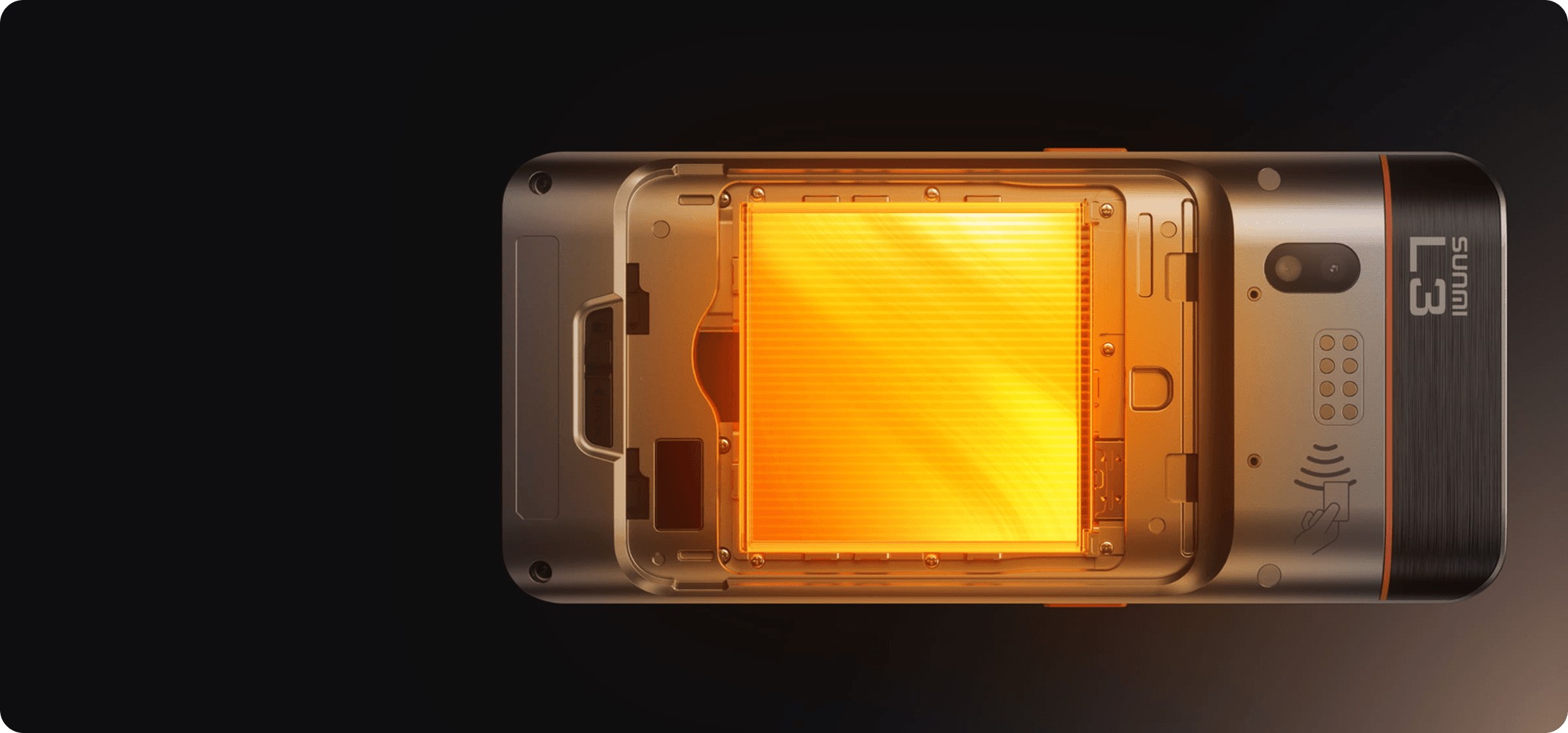

Removable Lithium Polymer Battery 4.4V/5000mAh Support hot swap (optional)

Sensors

Gravity sensor Light sensor Proximity sensor Geomagnetism

Power Adapter

Input: 100V-240V AC Output: 9V2A/5V2A DC

Dimensions(L*W*H)

175*79*15 mm

Net Weight

282g

Protection

IP68 1.5m Drop Test (Concrete floor)

Environment

Operating Temperature: -20°C to 55°C Storage Temperature: -40°C to 70°C Operating Humidity: 5% to 95% non-condensing

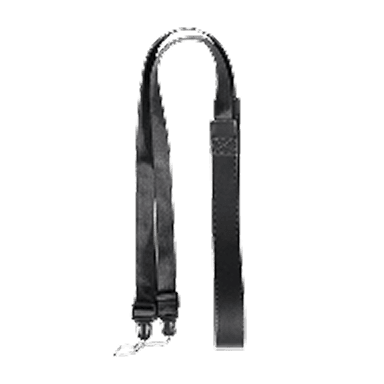

Accessories

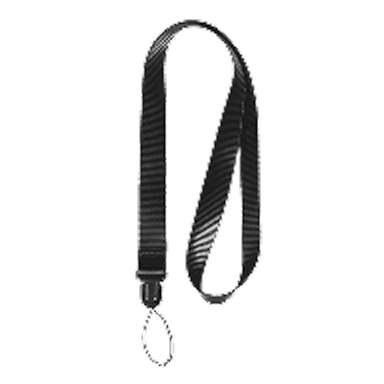

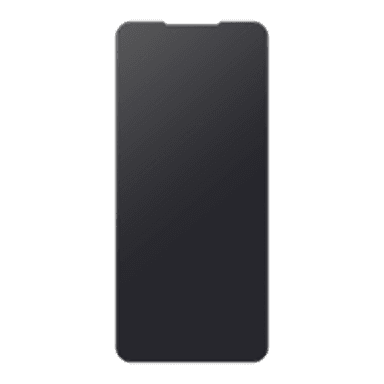

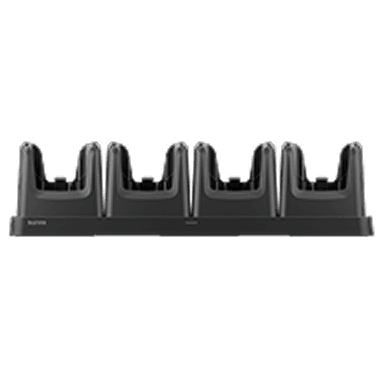

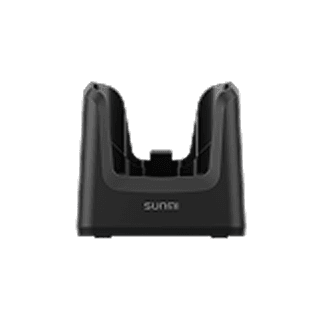

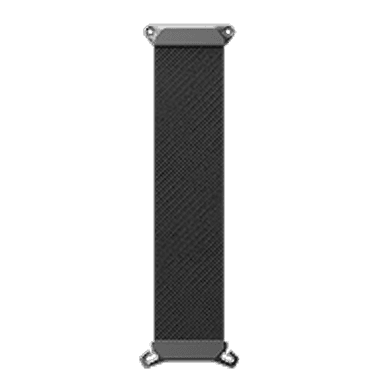

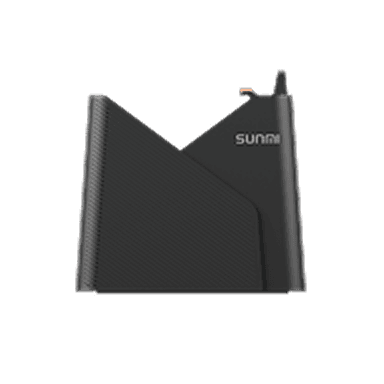

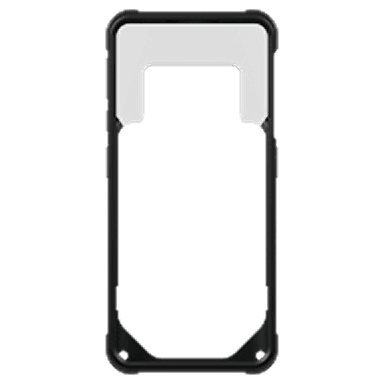

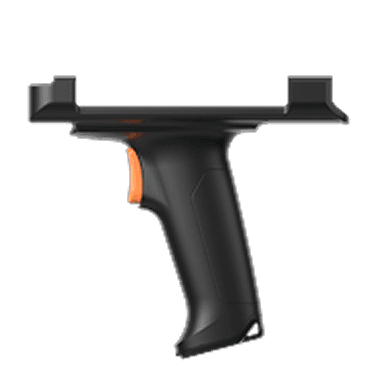

Tempered Glass Screen Protector Protective Case Hand Strap Lanyard Shoulder Starp Single Charging Base 4-Slot Charging Base 4-Slot Battery Charger Trigger Handle
