Product Model

FW020

OS

Linux

Wireless Protocols

802.11ah

Wireless Frequency

Sub 1GHz

Antenna

A built-in antenna

Wireless Security Protocols

Supports up to WPA3

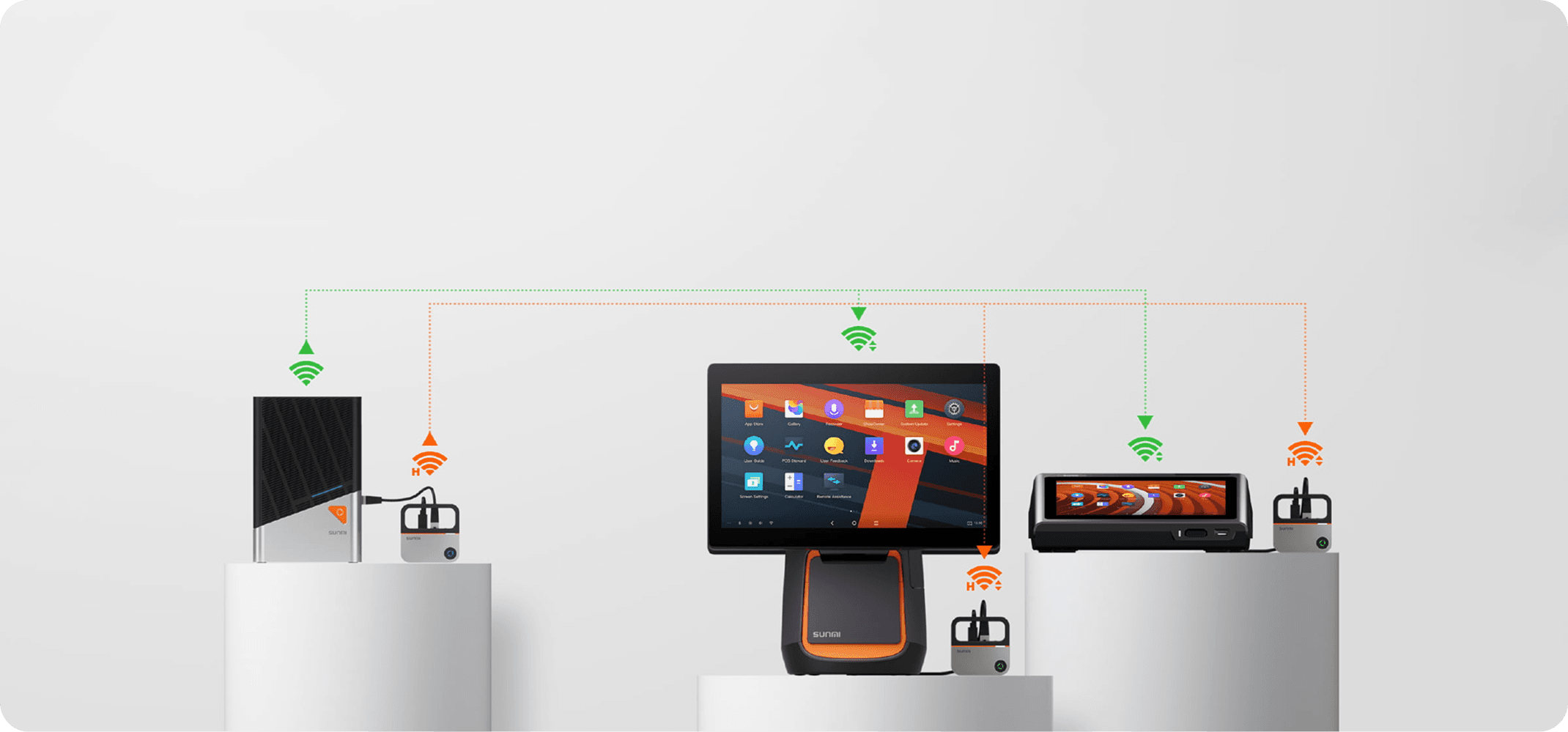

Wireless Mode of Operation

AP (Transmiter Mode) Client (Receiver Mode)

Power Indicator

Flashing white: The system is starting Solid white: The system is working normally

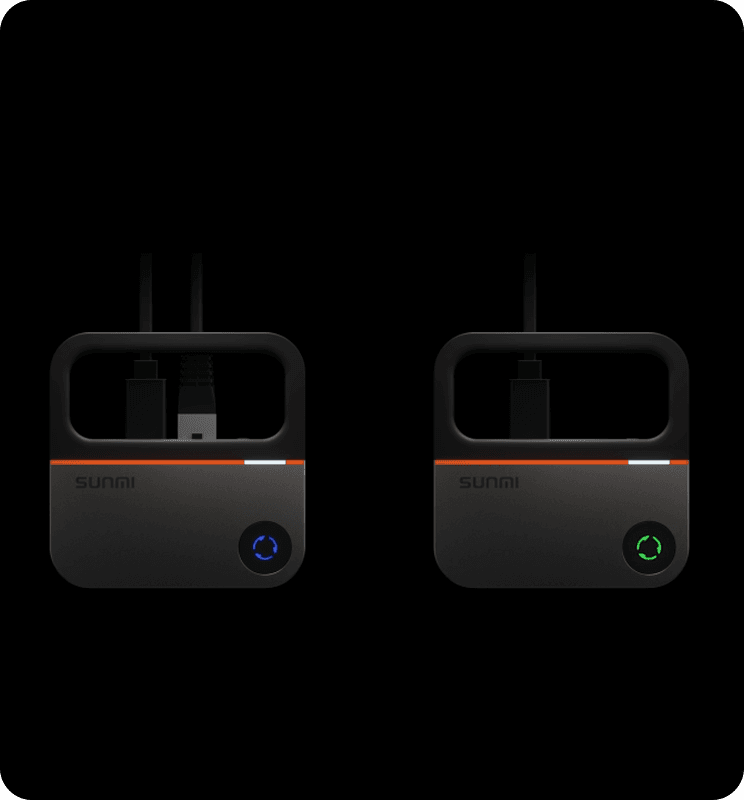

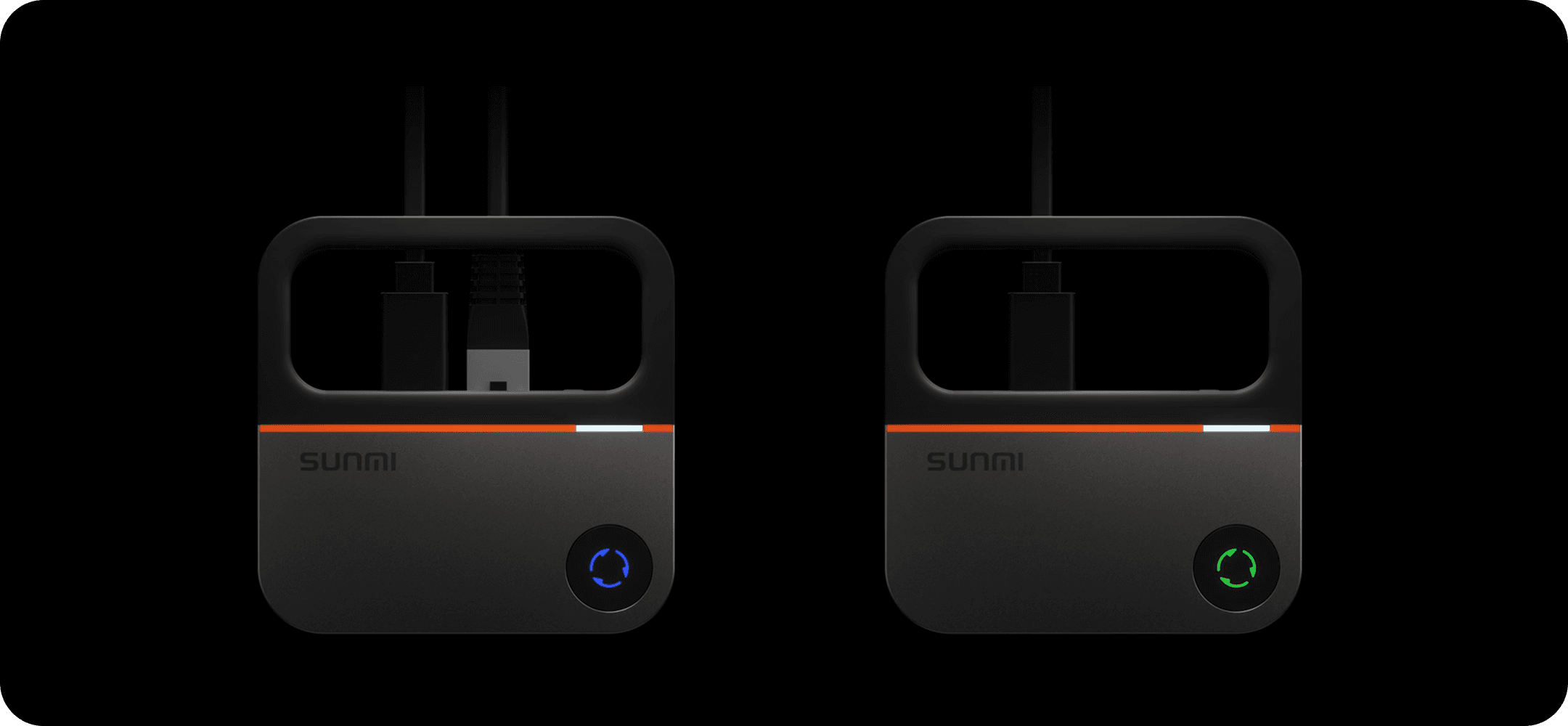

Wireless Indicator

AP (Transmiter Mode) Solid blue: Wireless is working properly Flashing blue: Waiting for the client to be connected Client (Receiver Mode) Solid green: The AP is connected and the signal is good Flashing green: Searching AP signals Solid orange: The AP is connected and the signal is poor Off: The AP cannot be connected

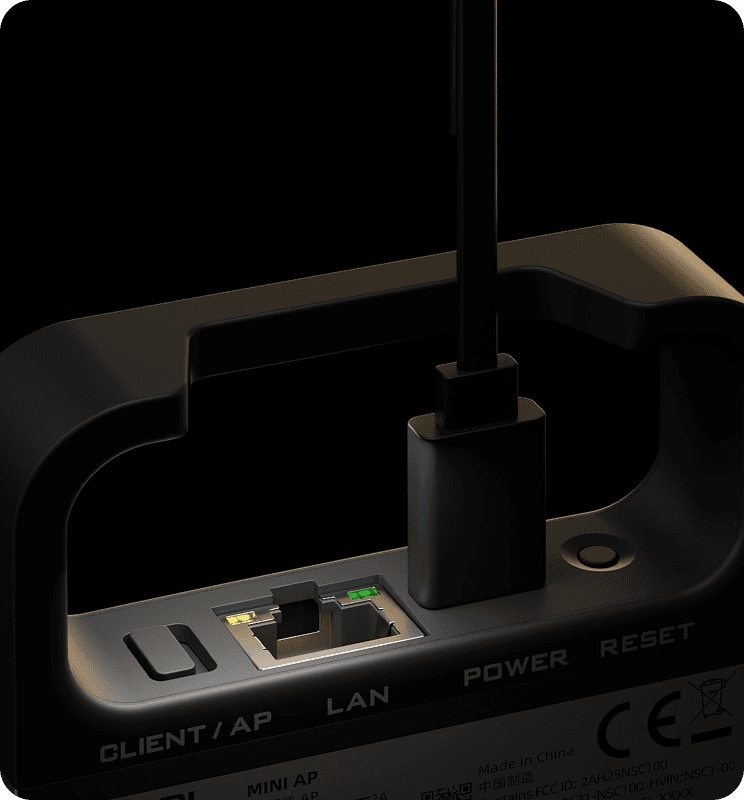

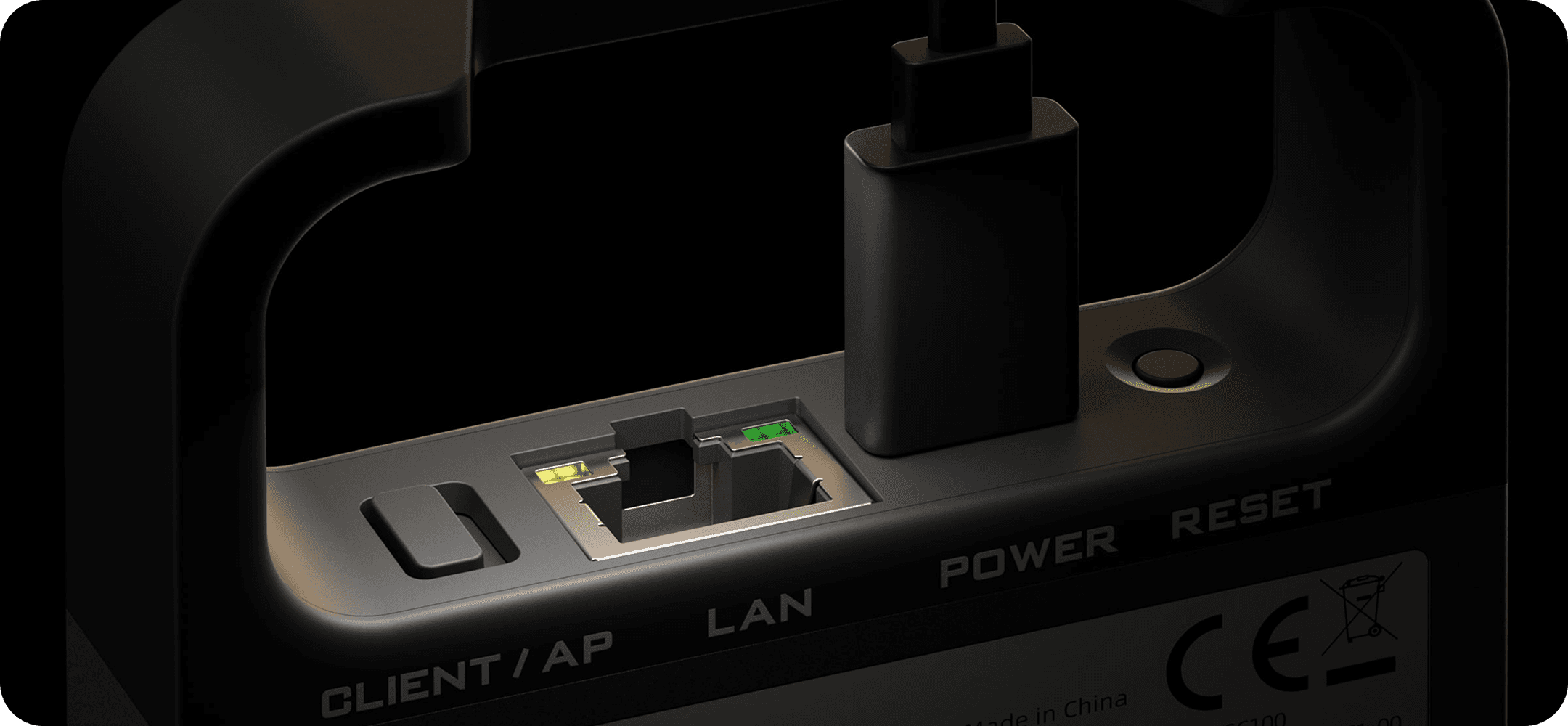

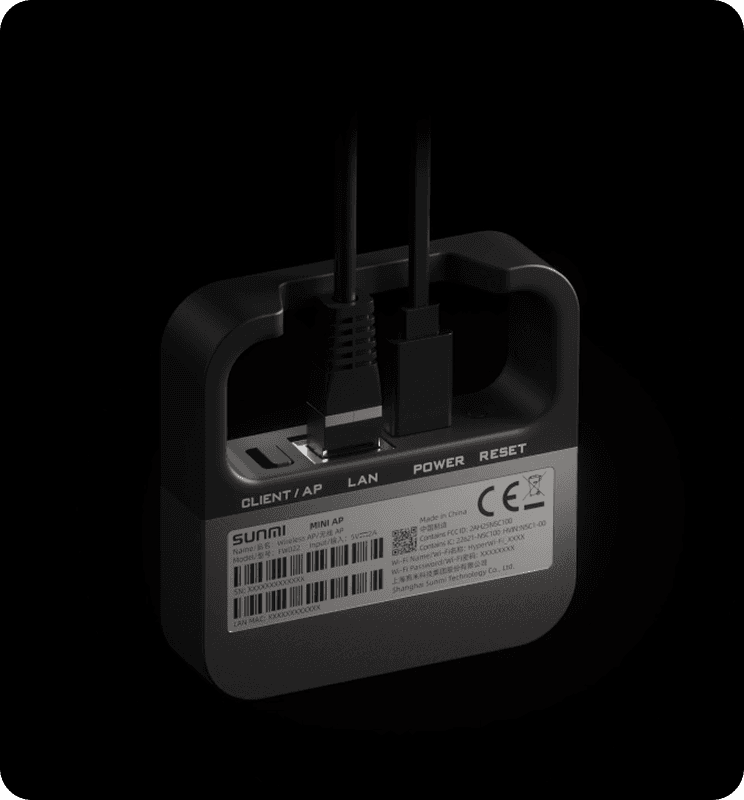

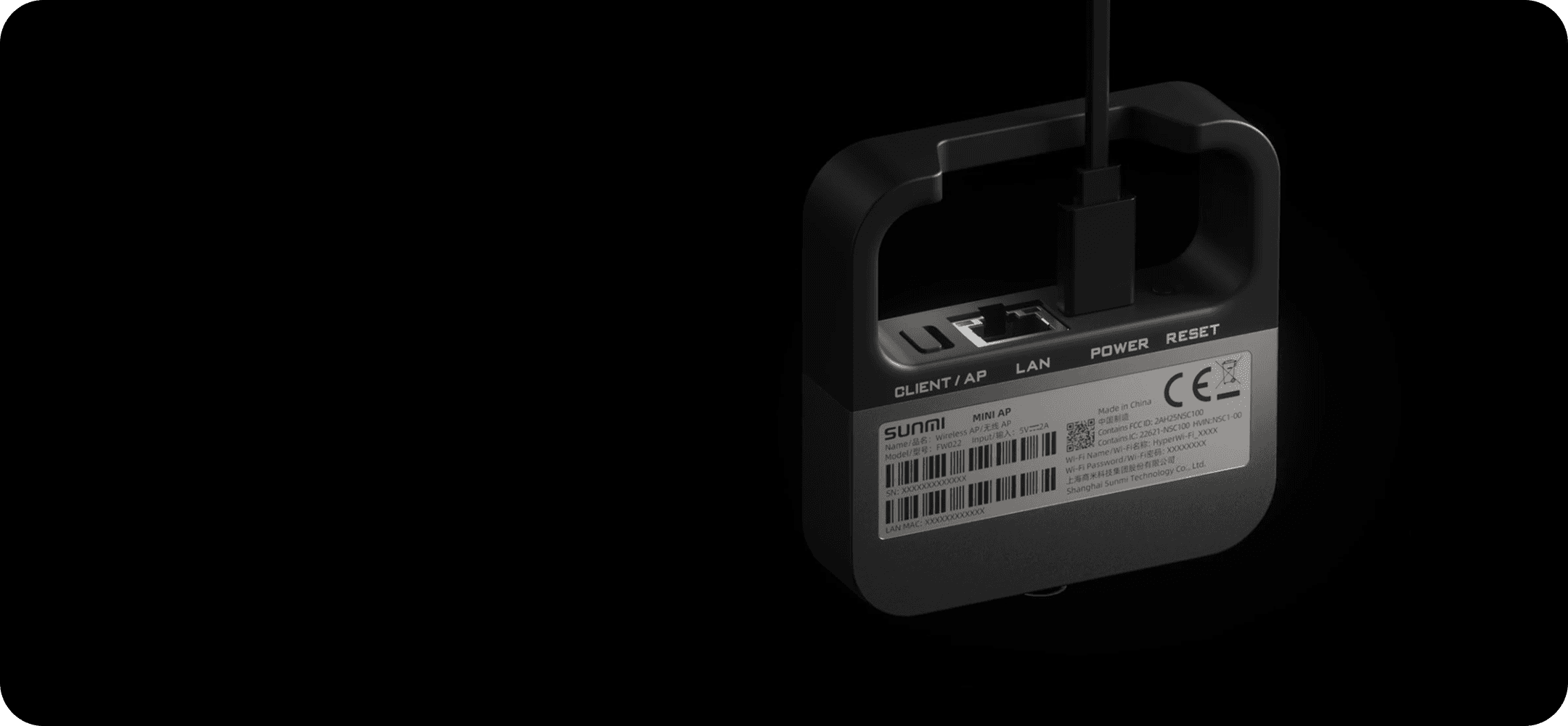

Wired Network

1 x 10/100Mbps LAN port

Power Adapter

DC 5V/2A (Type-C USB)

Buttons

1 Reset button 1 wireless network pairing button 1 mode toggle switch

Total Weight

73g

Operating Environment

Operating temperature: -10°C to 40°C Operating humidity: 10%~90% RH (non-condensing)

Storage Environment

Storage temperature: -40°C to 70°C Storage humidity: 10%~90% RH (non-condensing)

Accessories

1* user guide 1* network cable 1* Type-C USB cable 1* piece of 3M adhesive backing

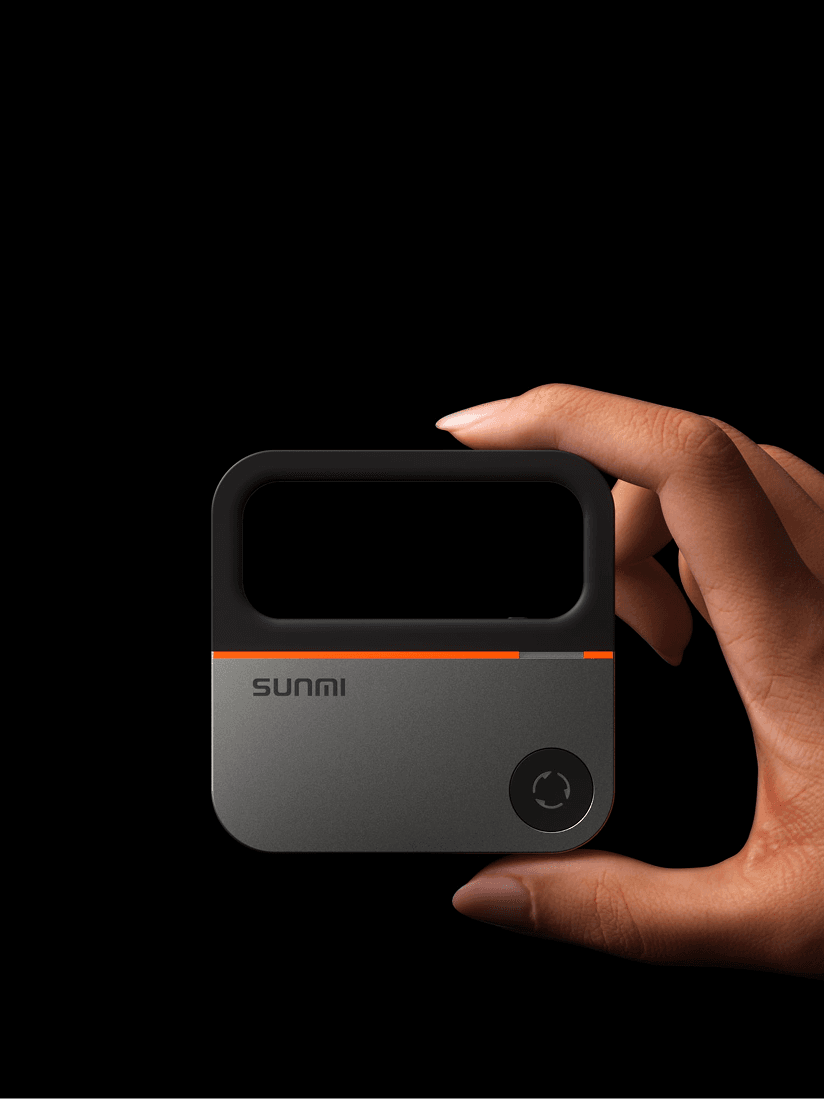

Dimensions (L*W*H)

76*76*19mm
